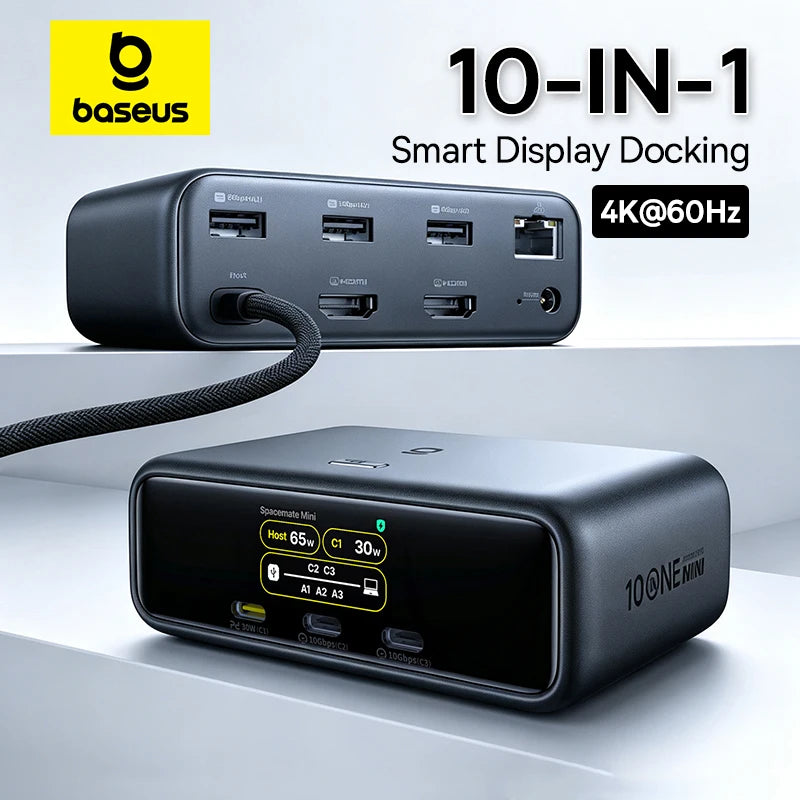

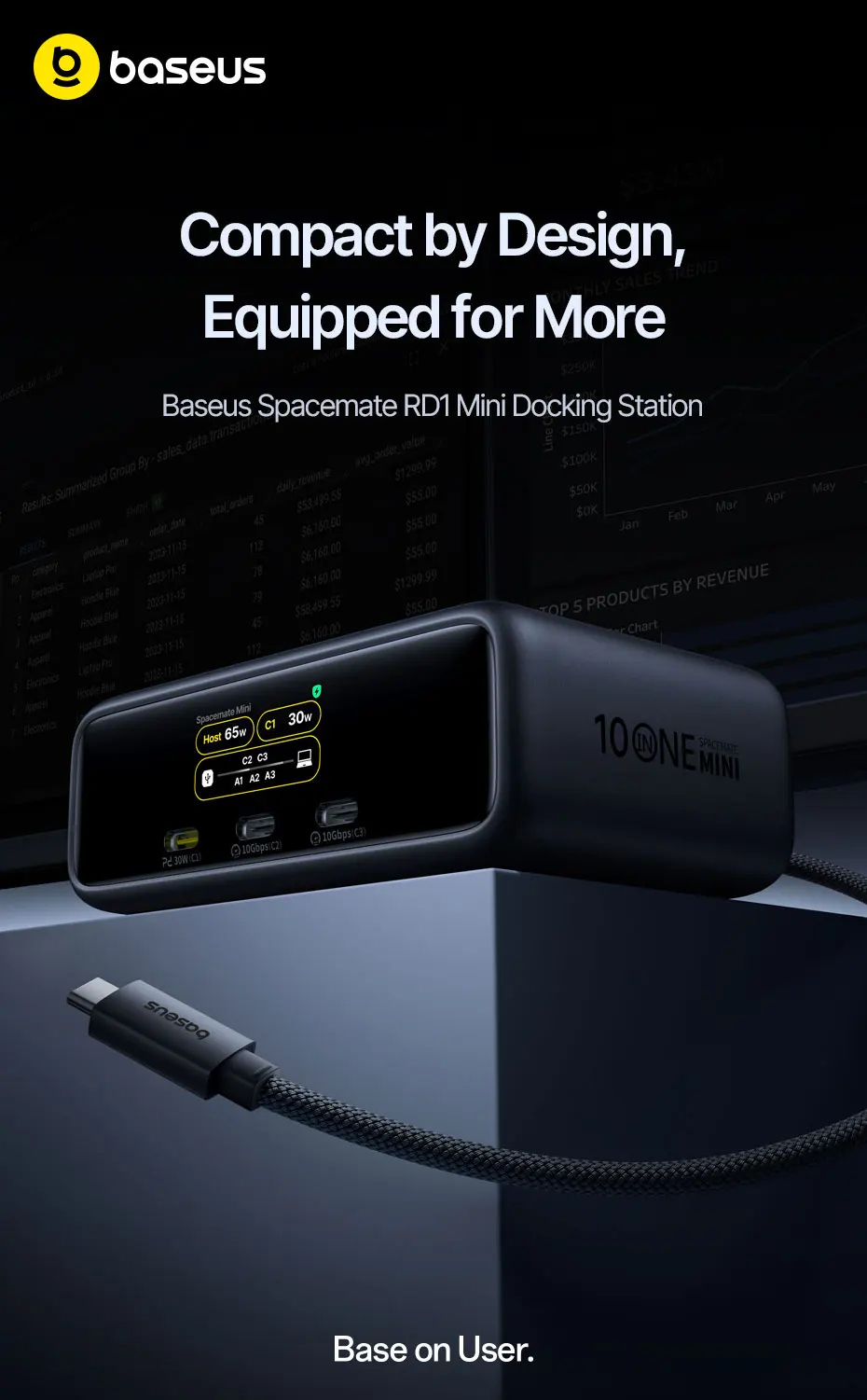

Baseus 10-in-1 Smart Display USB-C Docking Station

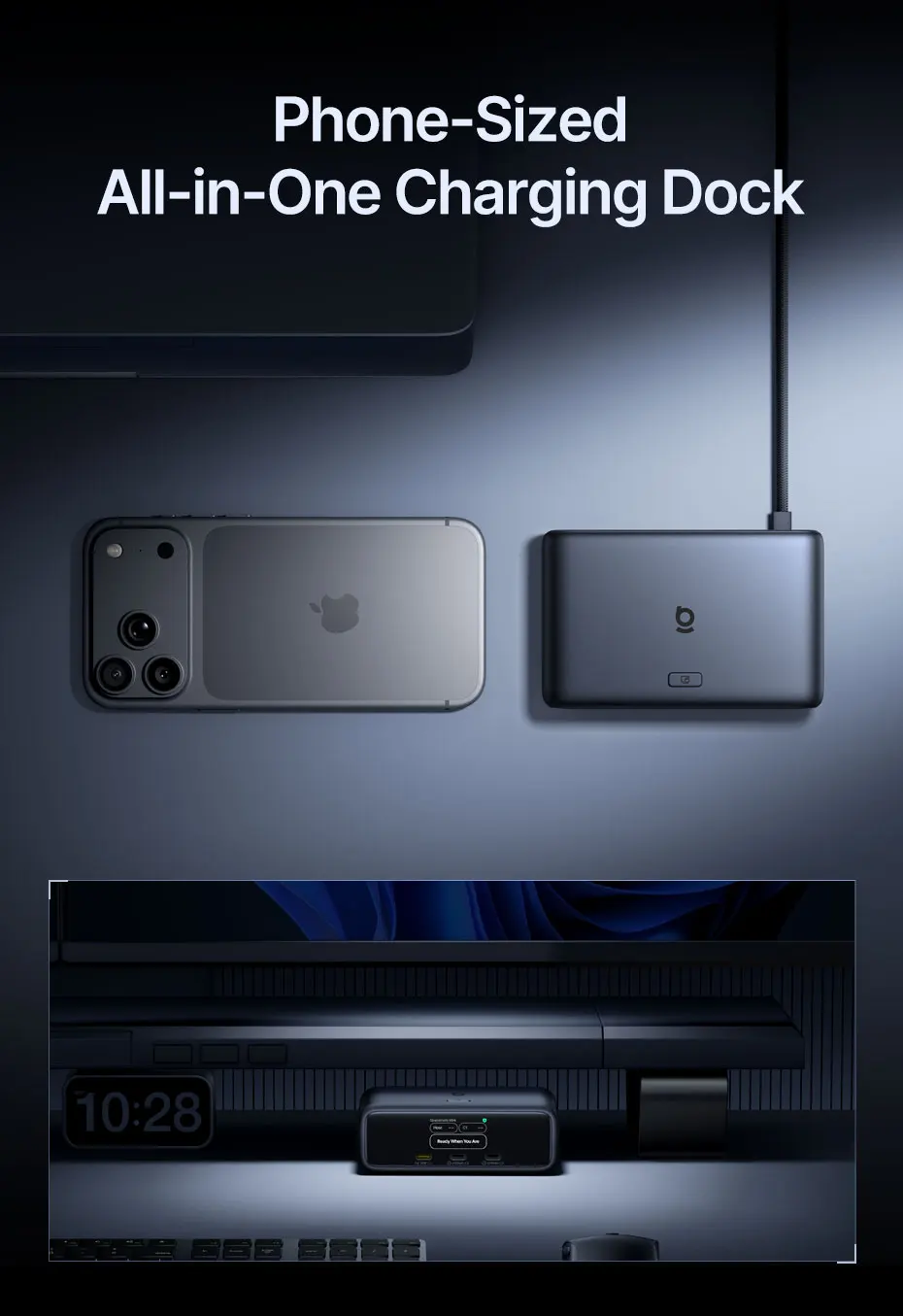

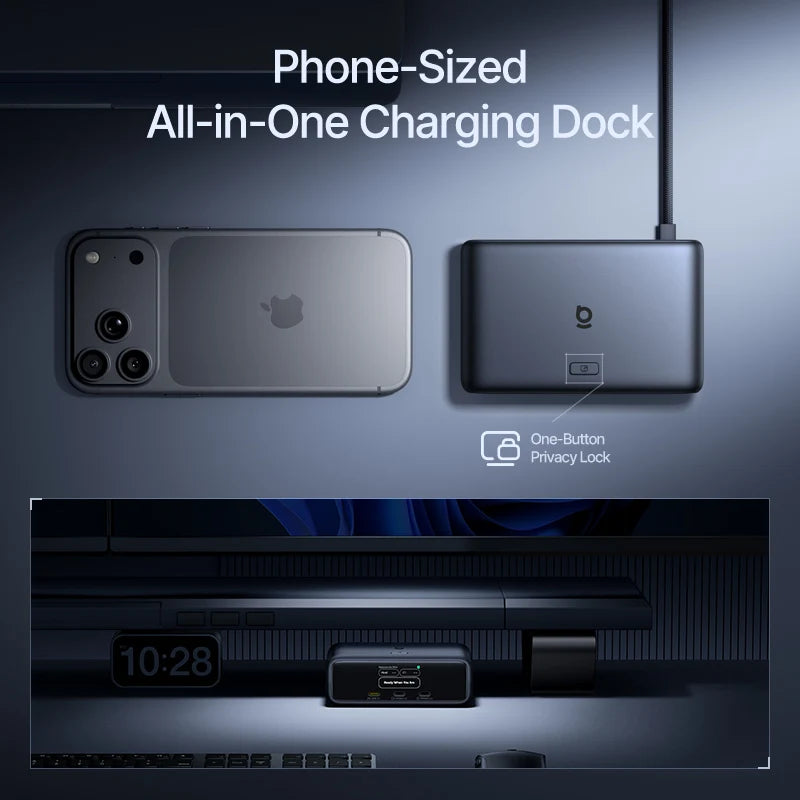

Phone-Sized, All-in-One Charging Dock

Get a complete desktop workstation in a remarkably compact design.

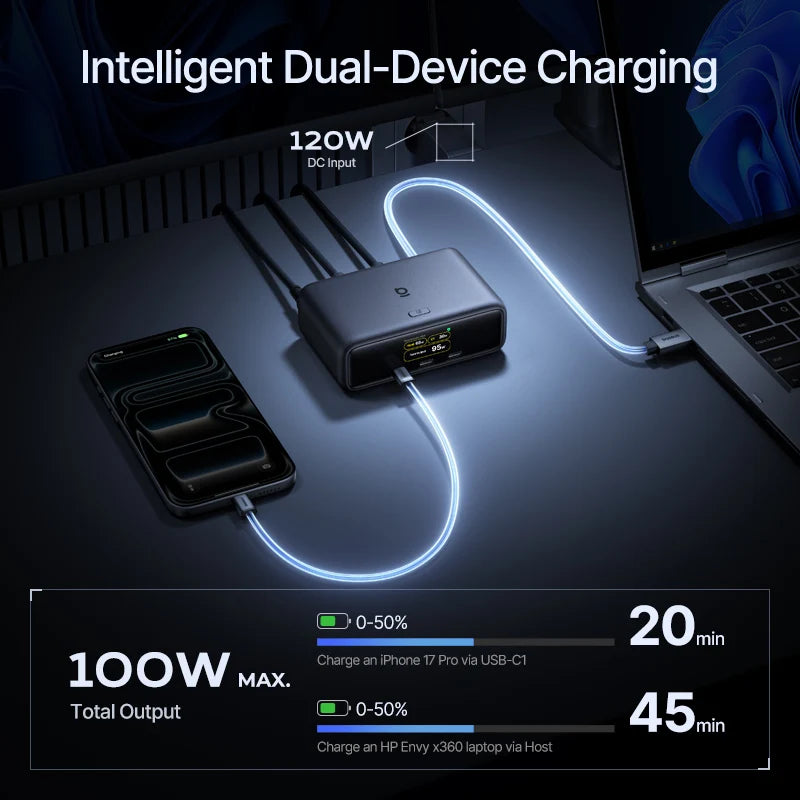

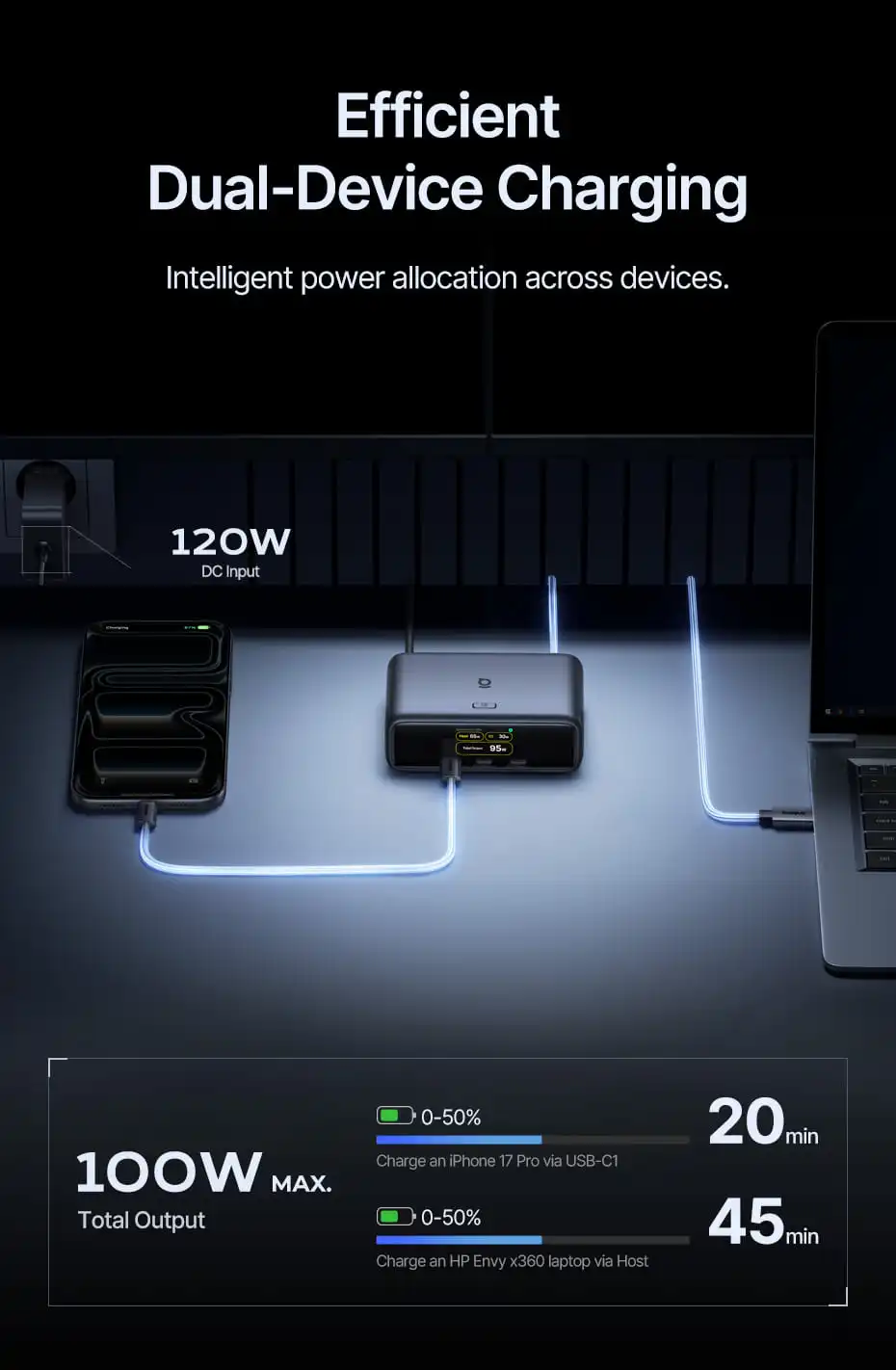

Efficient Dual-Device Charging

Intelligent power allocation across devices. Get up to 100W total output to power your laptop alongside a phone, tablet, or earbuds.

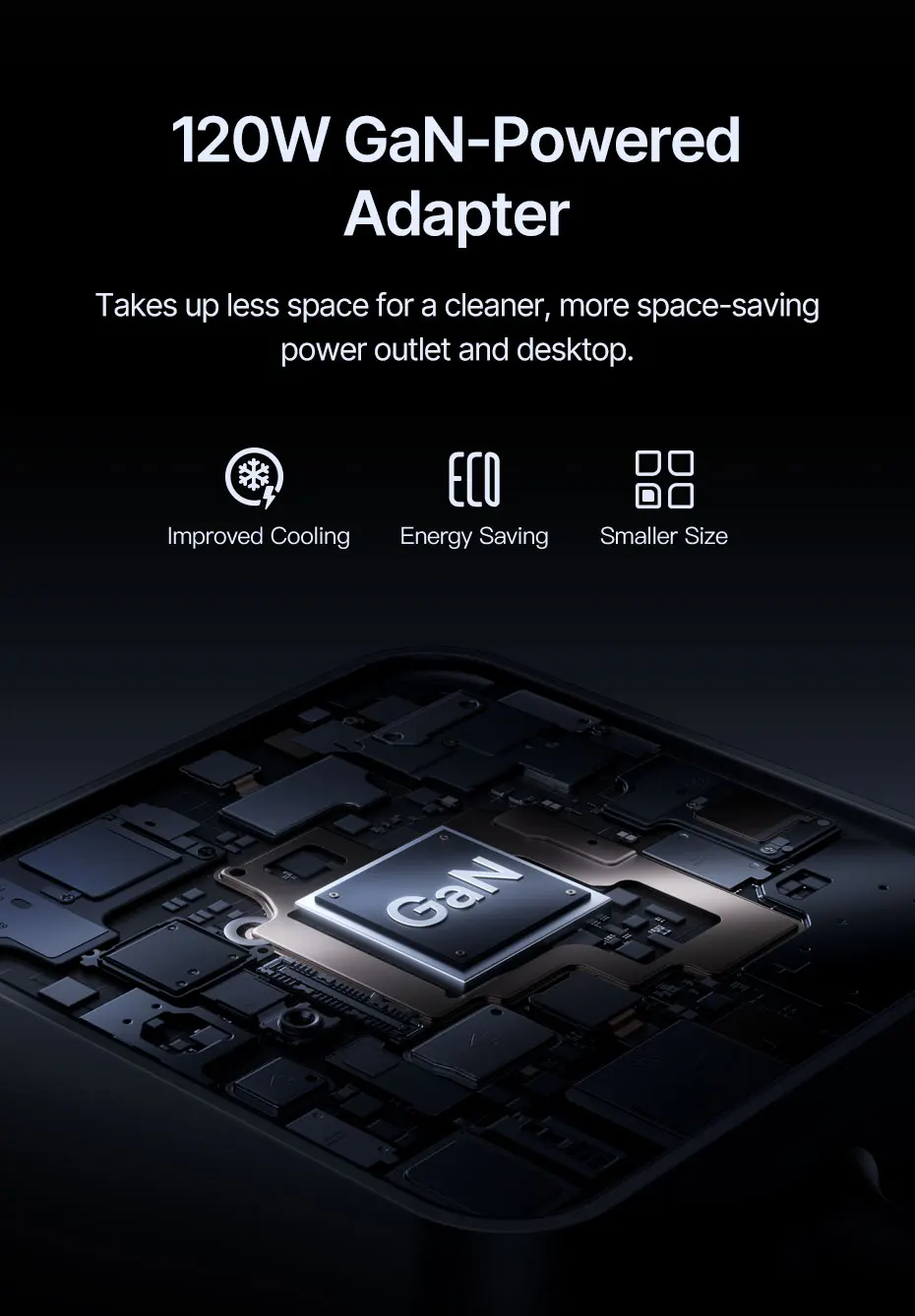

120W GaN-Powered Adapter

The included 120W GaN adapter delivers high power without adding bulky desktop clutter, which takes up less space for a cleaner, more space-saving power outlet and desktop.

✅Improved Cooling

✅Energy Saving

✅Smaller Size

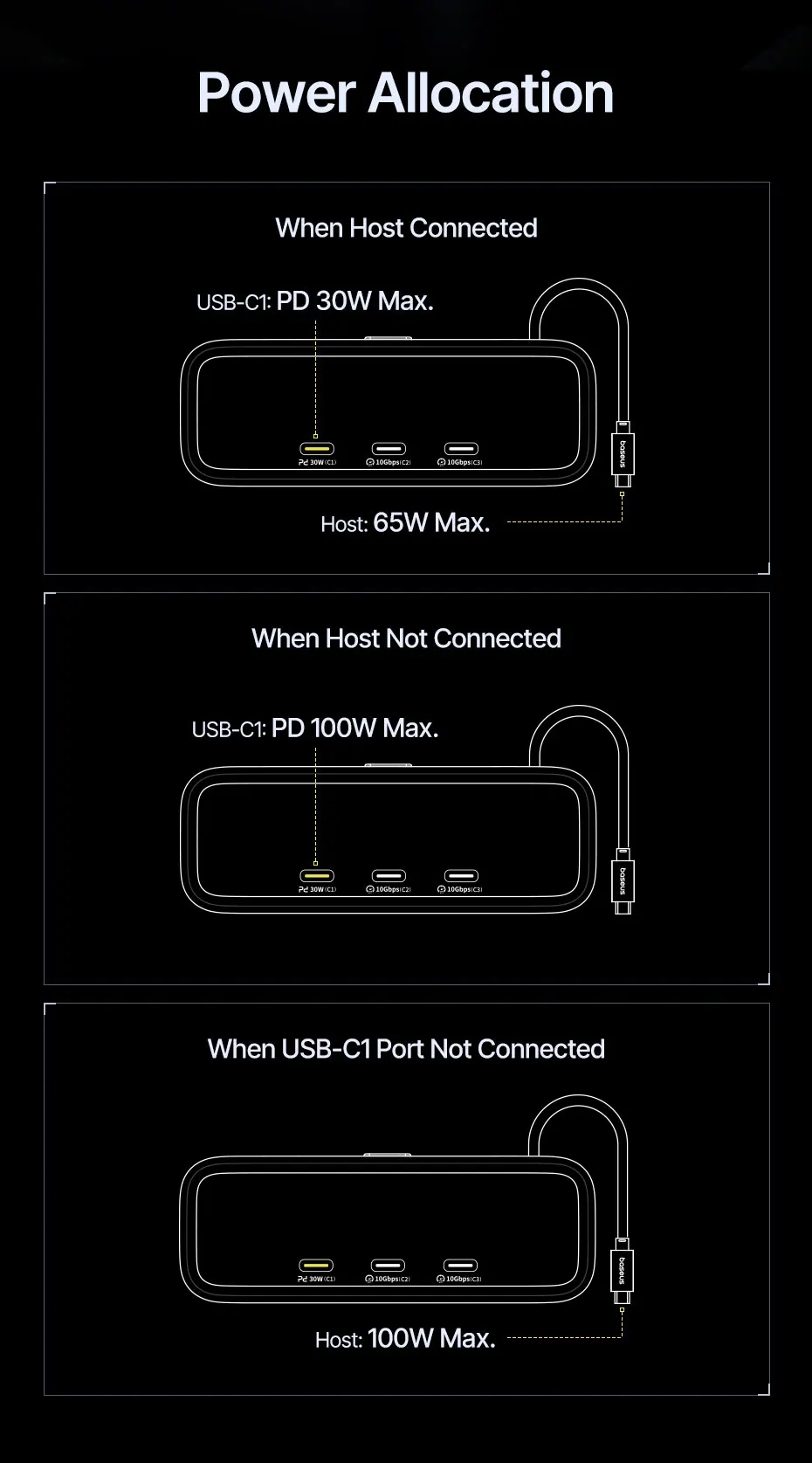

Power Allocation

Intelligent power allocation adjusts output across connected devices.

① When Host Connected:

USB-C1: PD 30W Max.

Host: 65W Max.

② When Host Not Connected:

USB-C1: PD 100W Max.

③ When USB-C1 Port Not Connected:

Host: 100W Max.

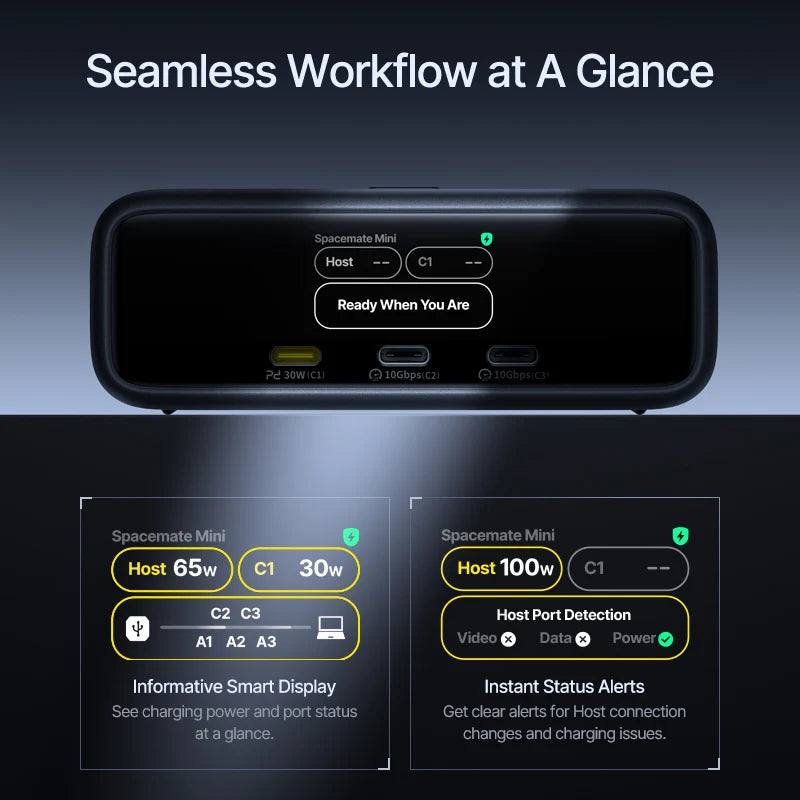

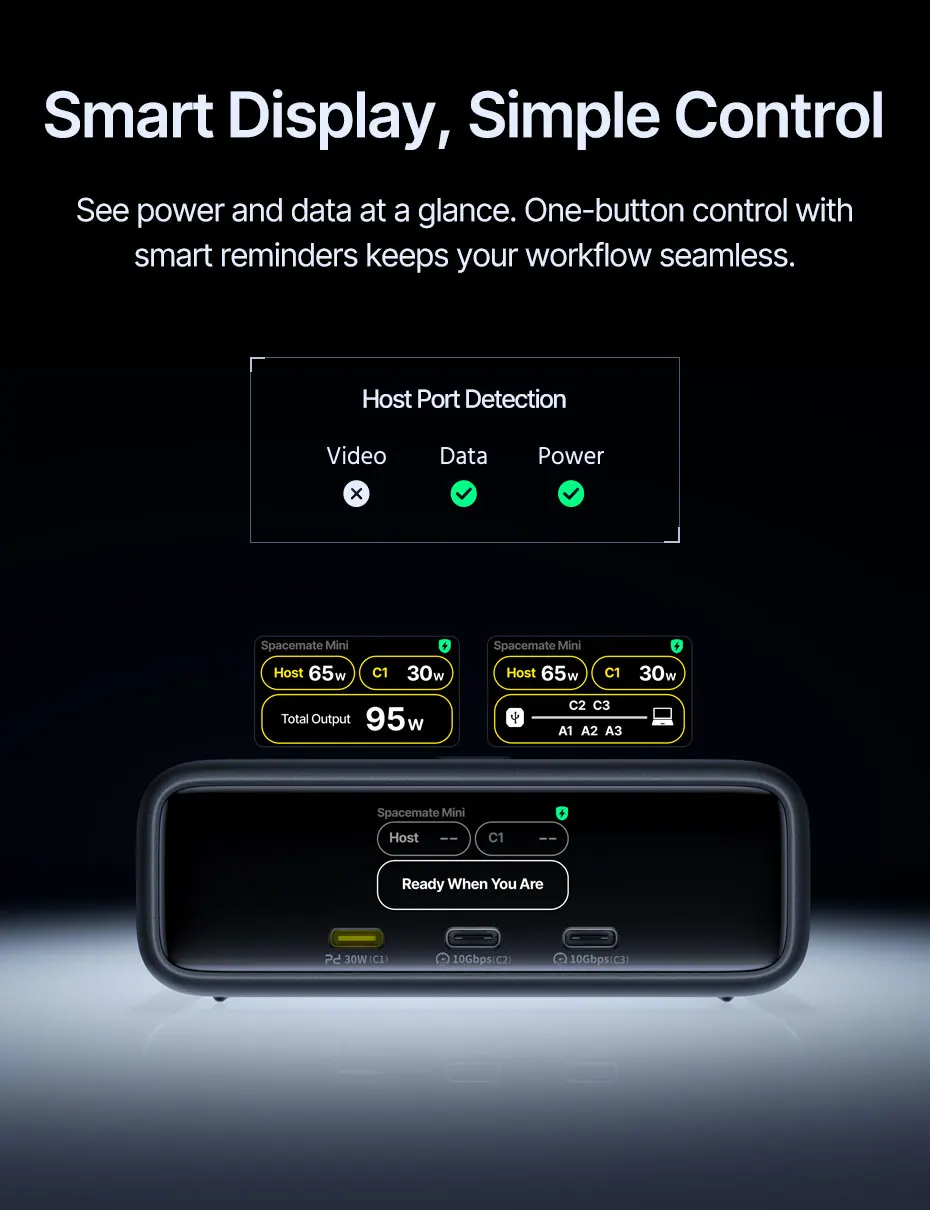

Smart Display, Simple Control

See power and data at a glance. One-button control with smart reminders keeps your workflow seamless.

*When connected to a PC and other peripherals, this product automaticaally checks the PC's video, data, and power functions. If any issues are detected, a popup will display the results.

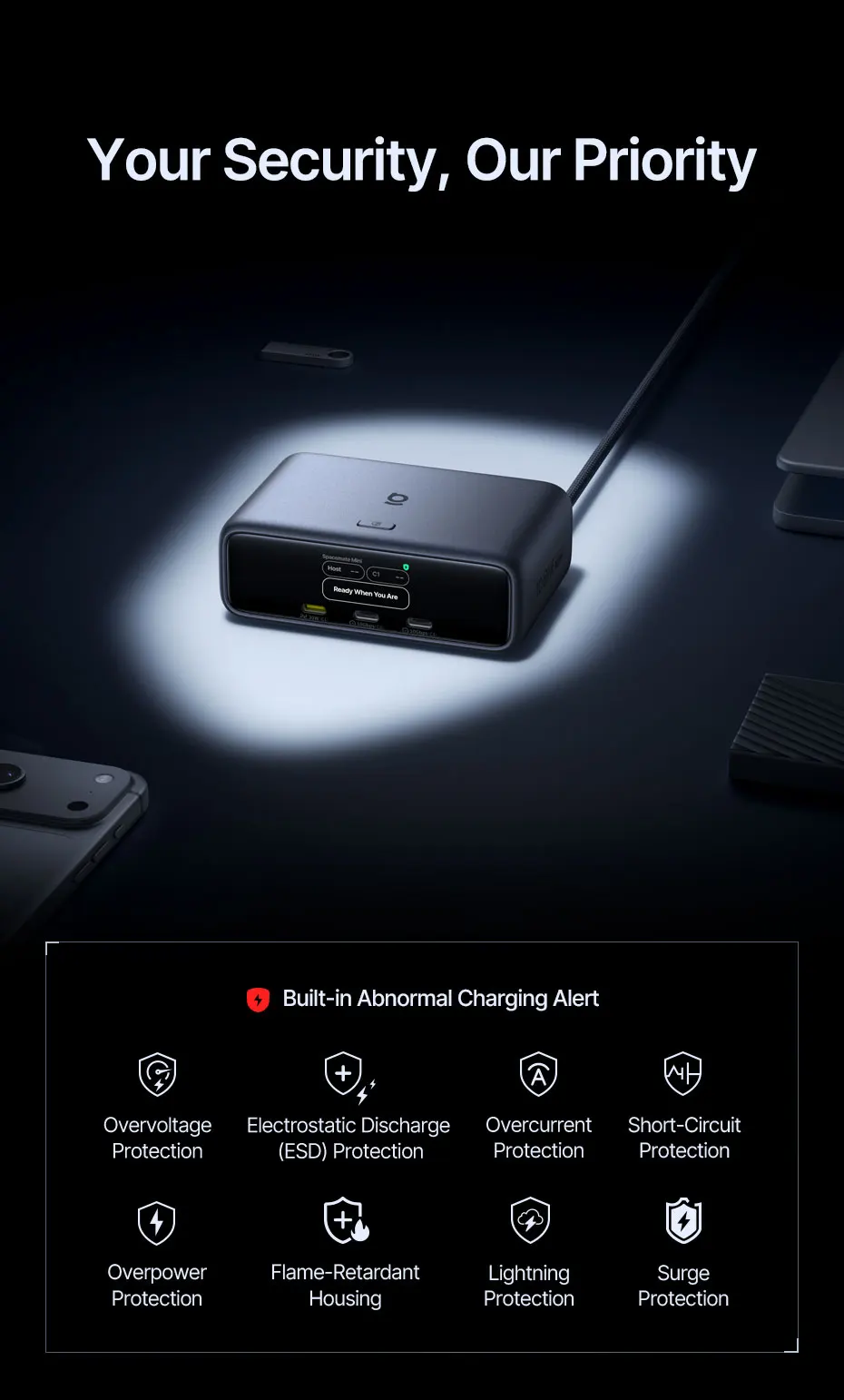

Your Security, Our Priority

Built-in Abnormal Charging Alert

✅Overvoltage Protection

✅Electrostatic Discharge (ESD) Protection

✅Overcurrent Protection

✅Short-Circuit Protection

✅Overpower Protection

✅Flame-Retardant Housing

✅Lightning Protection

✅Surge Protection

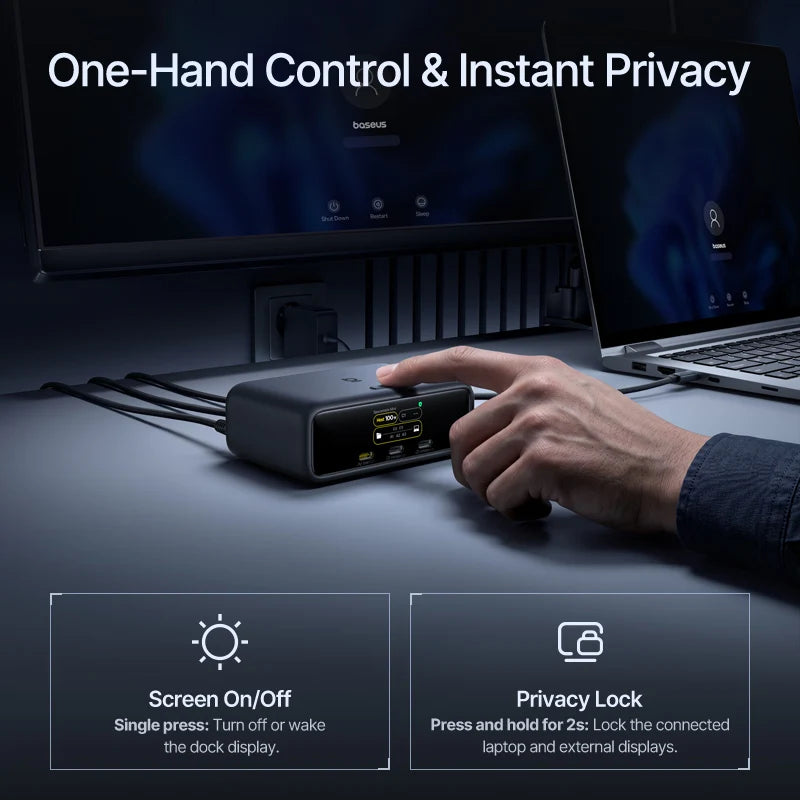

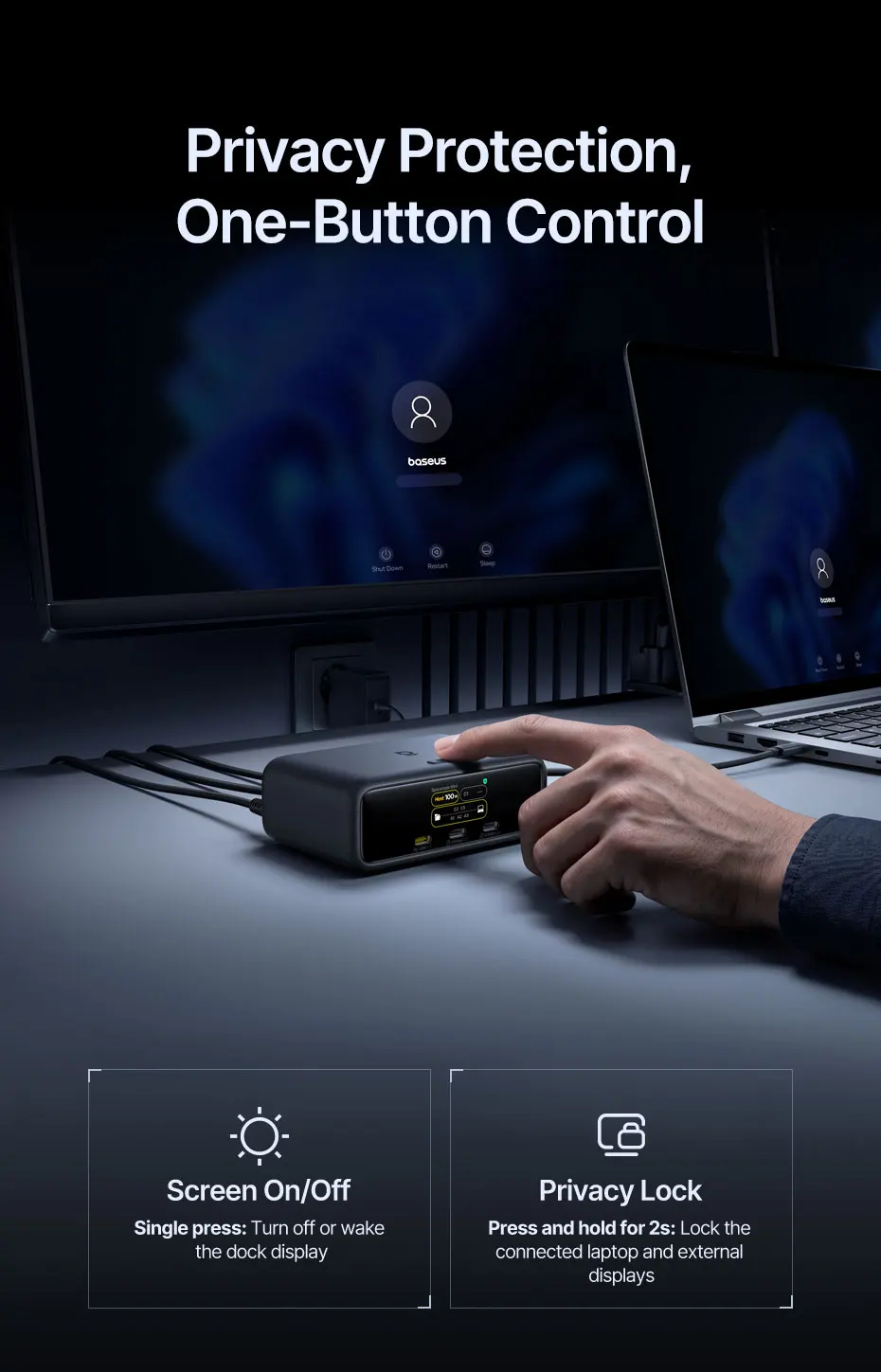

Privacy Protection, One-Button Control

Keep everyday controls within easy reach.

① Screen On/Off

Single press: Turn off or wake the dock display.

② Privacy Lock

Press and hold for 2s: Lock the connected laptop and external displays.

*Privacy lock is unavailable when the connected laptop is in sleep mode.

Ultra-Clear Dual 4K Displays

Expand across two monitors at up to 4K@60Hz for efficient multitasking.

✅For Multi-Screen Productivity

✅Retimer Chip For Signal Stability

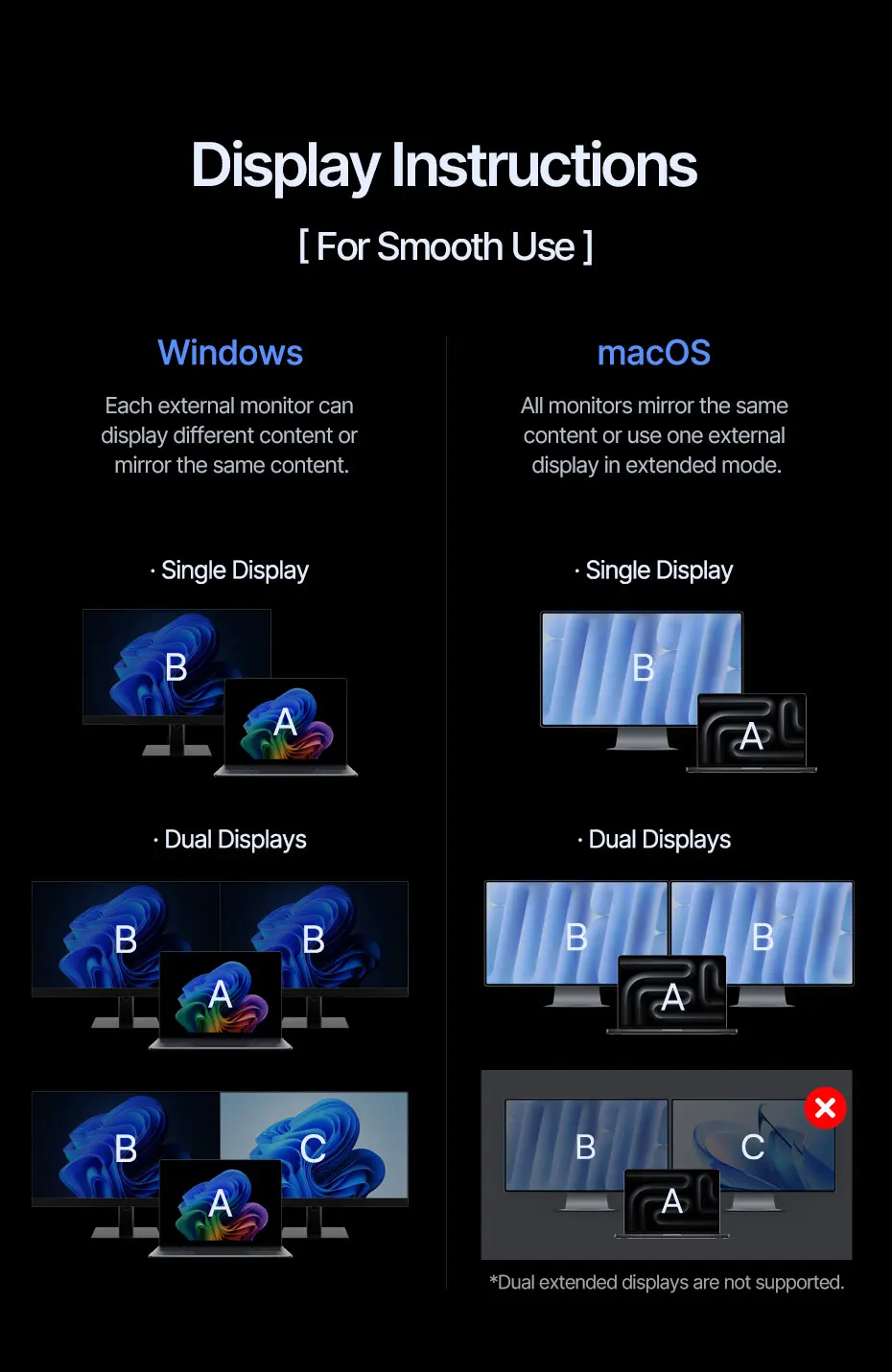

Display Instructions

[ For Smooth Use ]

① For Windows:

Each external monitor can display different content or mirror the same content.

② For macOS:

All monitors mirror the same content or use one external display in extended mode.

*Dual extended displays are not supported for macOS.

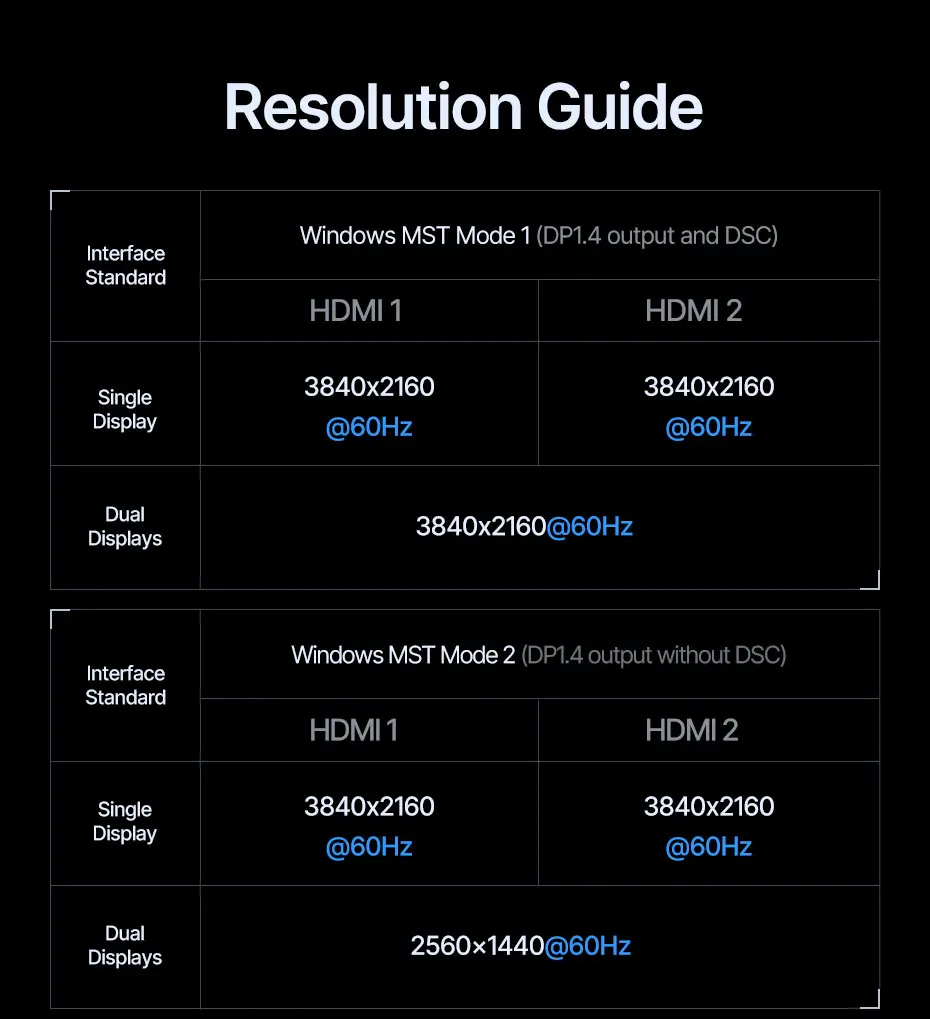

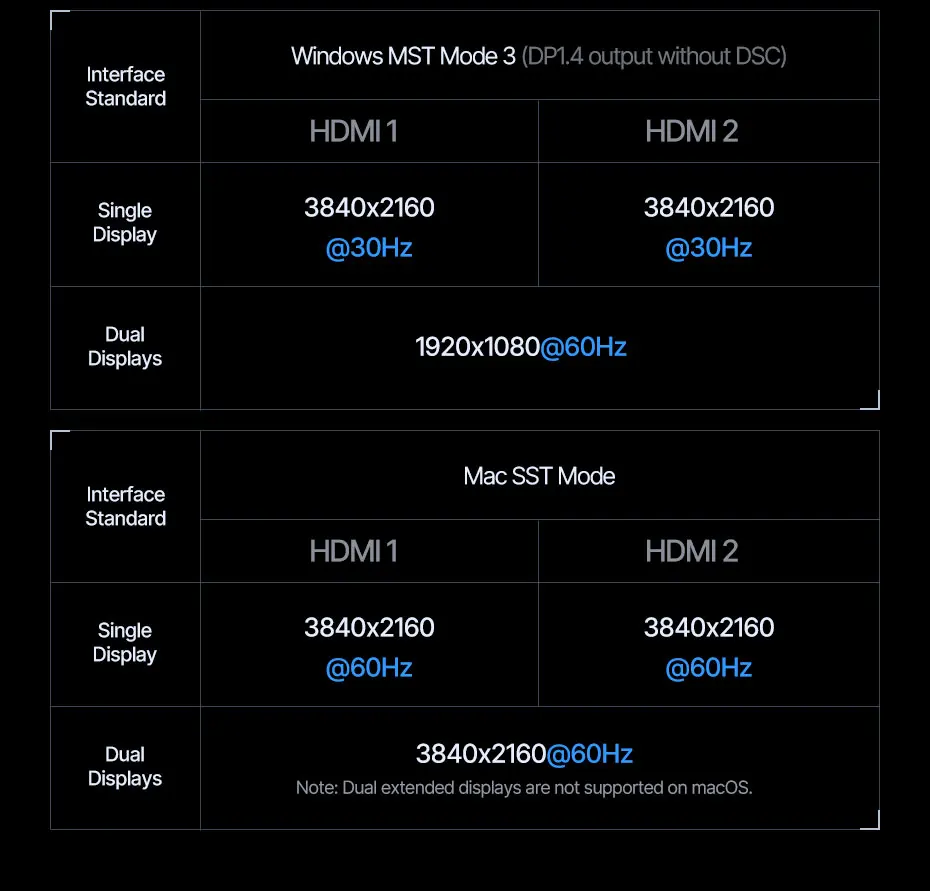

Resolution Guide

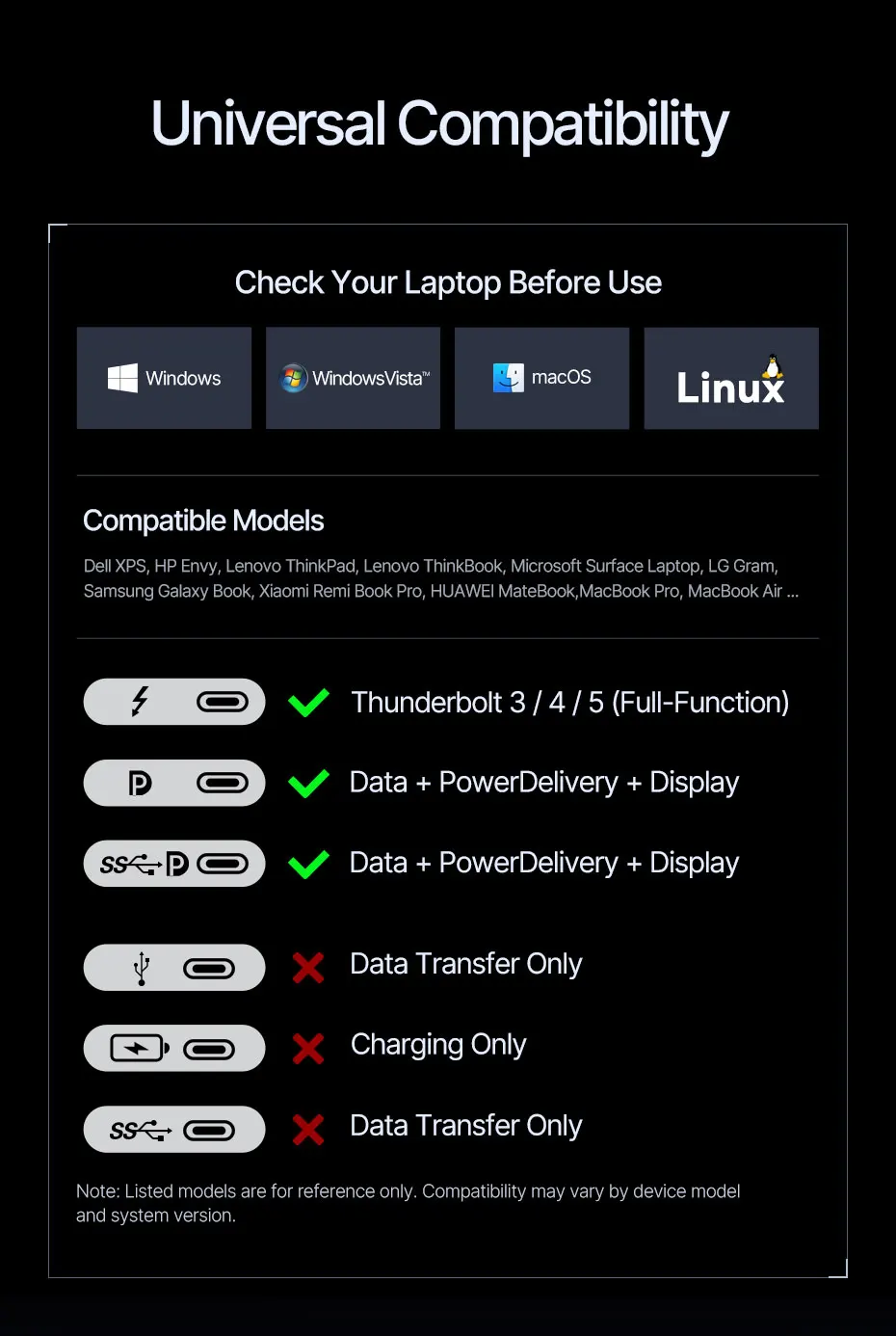

Universal Compatibility

Check your laptop before use

Note: Listed models are for reference only. Compatibility may vary bydevice mode and system version.

*For specific model compaatibility please contact customer service.

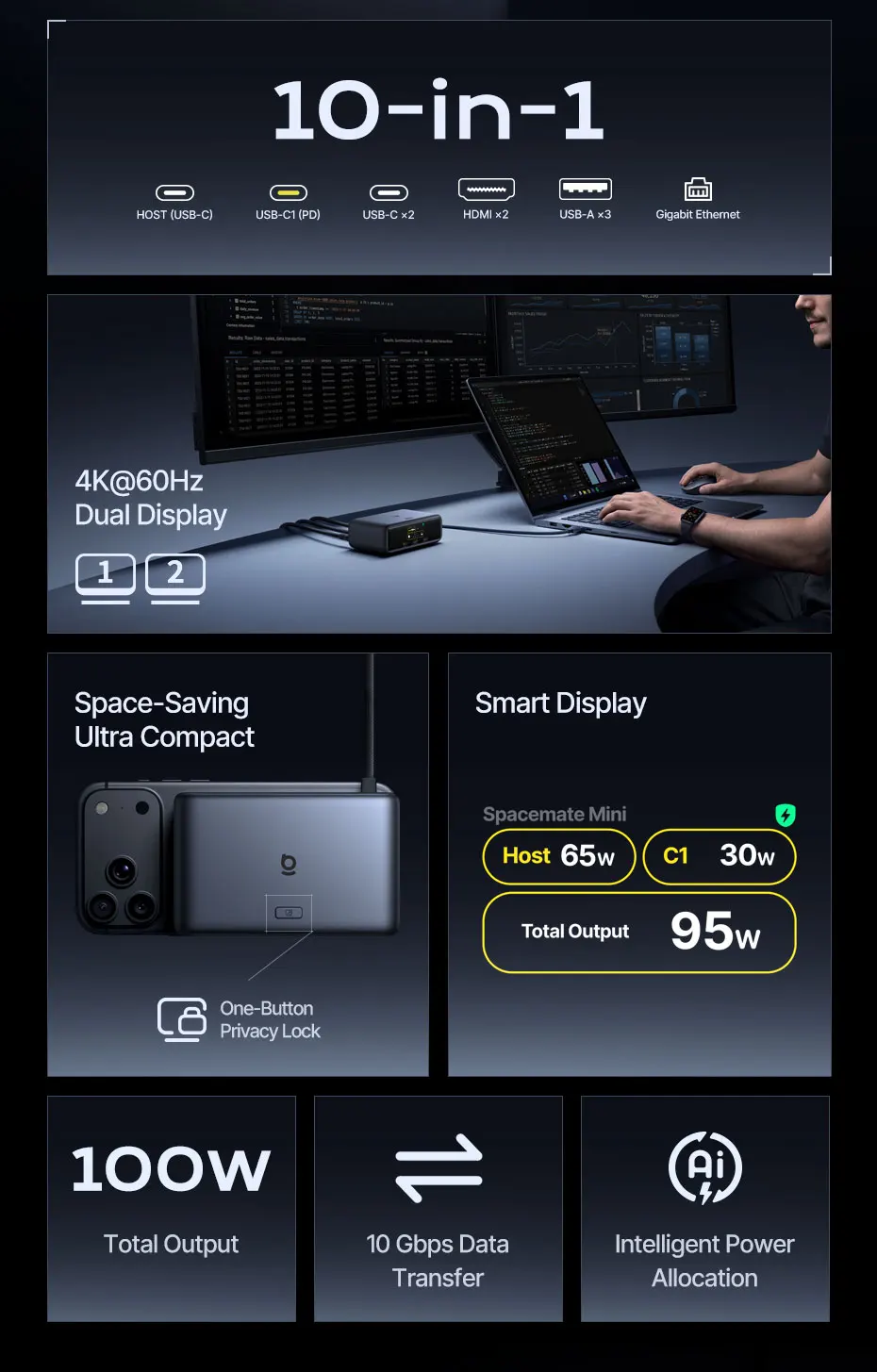

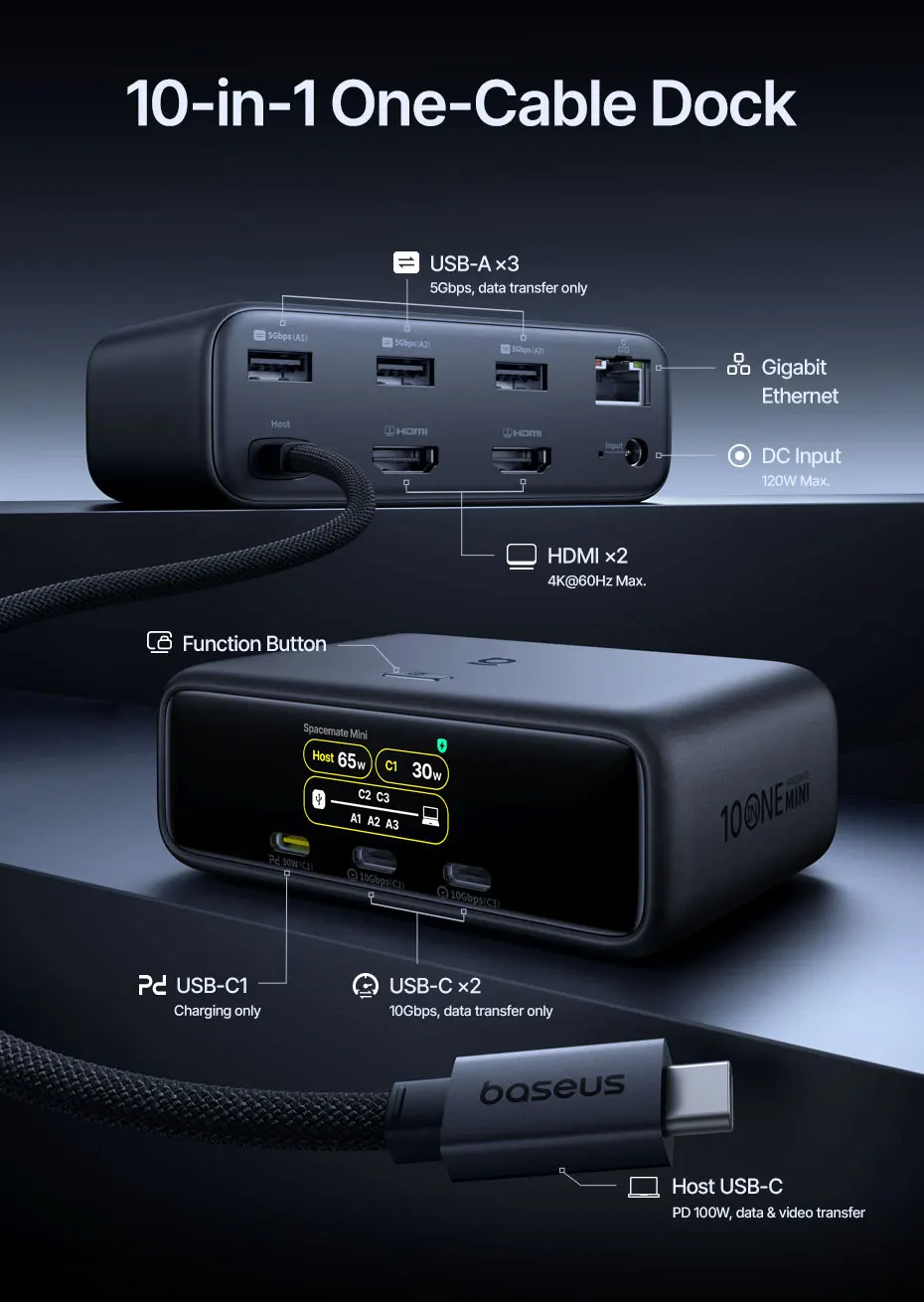

10-in-1 One-Cable Dock

• HDMI 1 / HDMI 2

4K@60Hz Max. display output for HDMI-enabled monitors.

Supports charging to smartphones or tablets. Does not support data andvideo transfer.

*When the USB-C (Host) port is connected to a device, USB-C1 output is up to 30W.

*When the USB-C (Host) port is not connected, USB-C1 output is up to 100W.

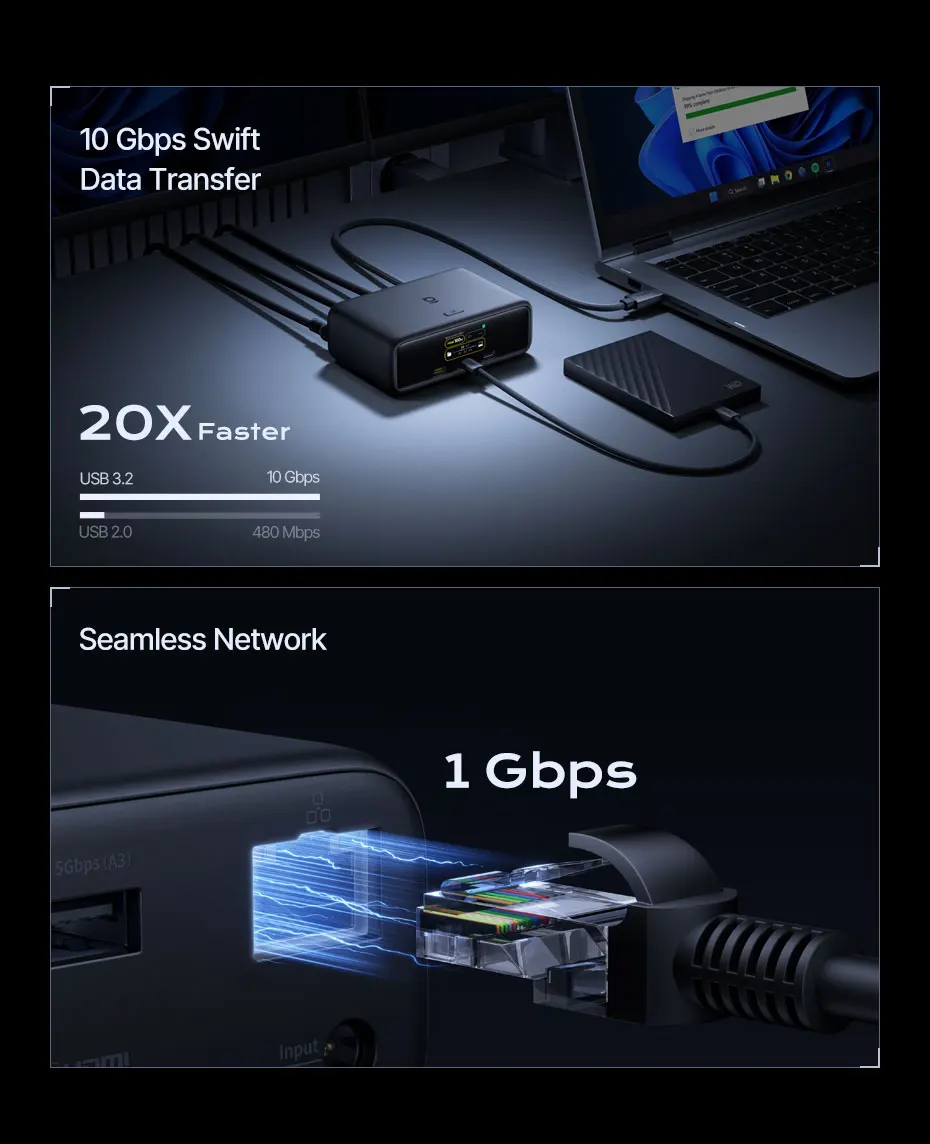

10Gbps Max data transfer. Does not support charging.

5Gbps Max data transfers. Does not support charging.

1000 Mbps (Gigabit), backward compatible with 100Mbps and 10Mbps.

Upstream port (full-featured USB-C, supports data, video, and power delivery)

Connect your laptop using USB-C cable.

*Ensure your laptop's USB-C port supports data, video, and power delivery for a one-cable laptop connection.

Only use the included DC adapter with this port.

Dock Display: Press once to turn off or wake the dock display.

Screen Lock: Press and hold the button for 2 seconds to lock the connected laptop and external displays. Press and hold for 2s again to return to the login screen.

*Unavailable when your computer is in sleep mode.

Please Note:

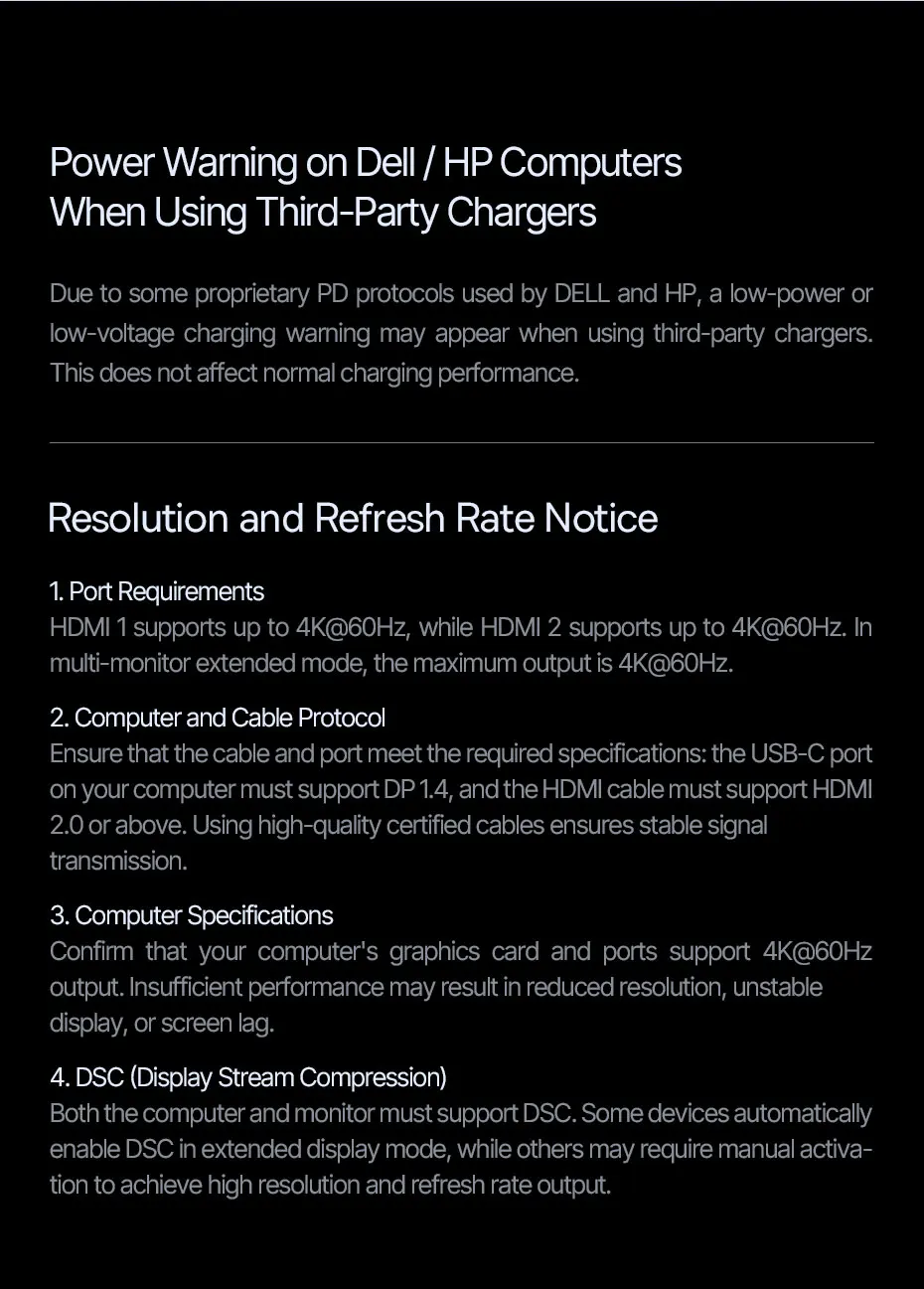

📢Power Warning on Dell / HP Computers When Using Third-Party Chargers:

-Due to some proprietary PD protocols used by DELL and HP, a low-power or low-voltage charging warning may appear when using third-party chargers. This does not affect normal charging performance.

📢Resolution and Refresh Rate Notice:

1. Port Requirements

-HDMI 1 supports up to 4K@60Hz, while HDMI 2 supports up to 4K@60Hz. In multi-monitor extended mode, the maximum output is 4K@60Hz.

2. Computer and Cable Protocol

-Ensure that the cable and port meet the required specifications: the USB-C port on your computer must support DP 1.4, and the HDMI cable must support HDMI 2.0 or above. Using high-quality certified cables ensures stable signal transmission.

3. Computer Specifications

-Confirm that your computer's graphics card and ports support 4K@60Hz output. Insufficient performance may result in reduced resolution, unstable display, or screen lag.

4. DSC (Display Stream Compression)

-Both the computer and monitor must support DSC. Some devices automatically enable DSC in extended display mode, while others may require manual activation to achieve high resolution and refresh rate output.

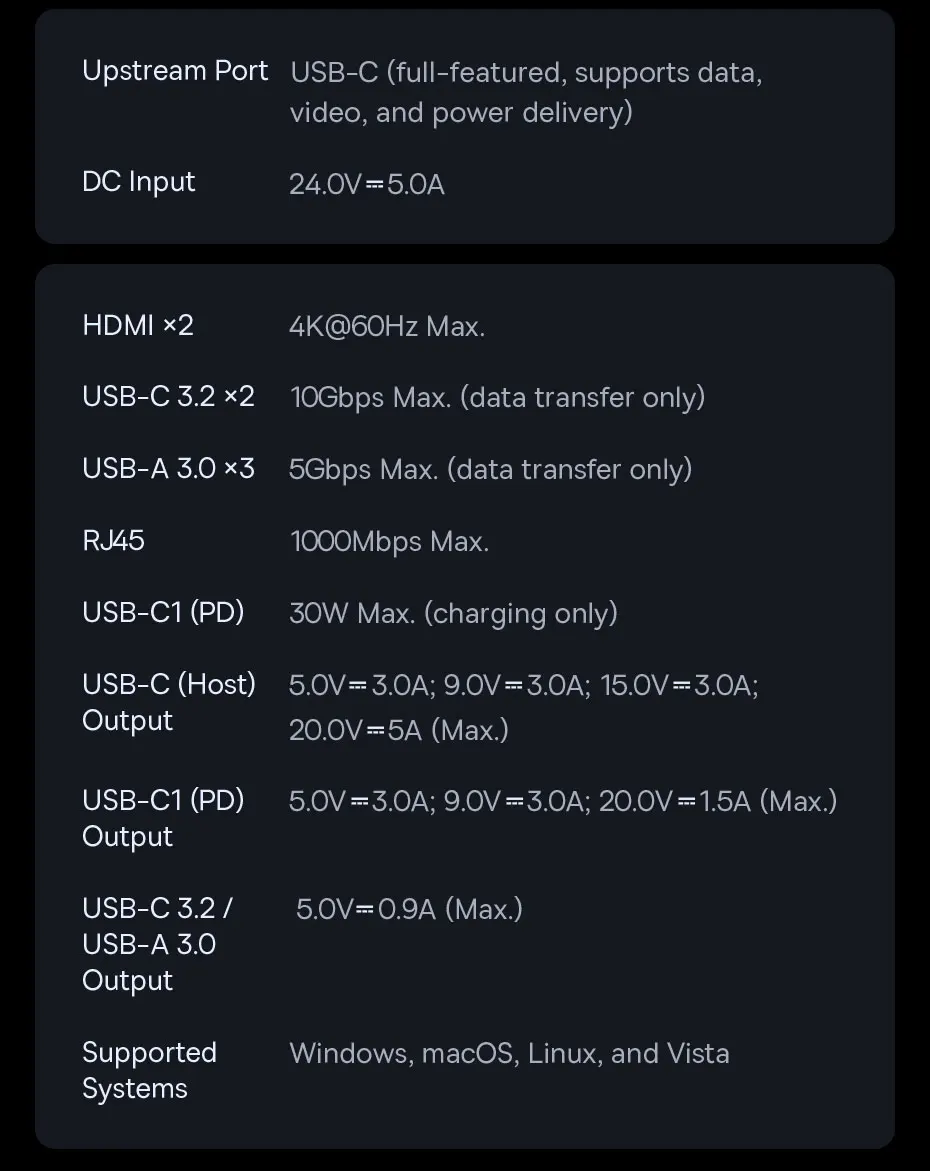

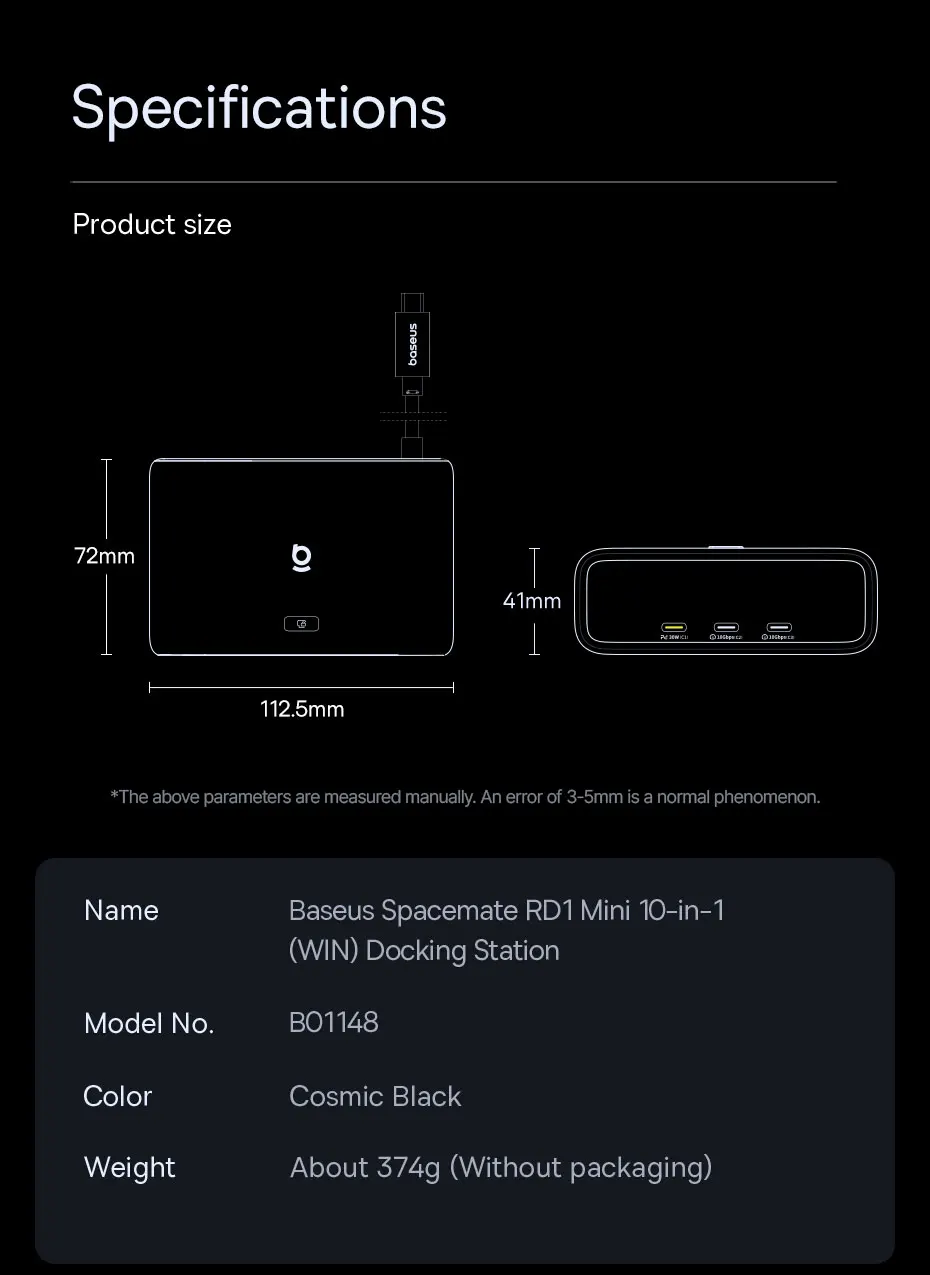

Specifications

Name: Baseus Spacemate RD1 Mini 10-in-1 (WIN) Docking Station

Model No: B01148

Color: Cosmic Black

Weight: About 374g (Without packaging)

Upstream Port: USB-C (full-featured, supports data, video, and power delivery)

DC Input: 24.0V=5.0A

HDMI x2: 4K@60Hz Max.

USB-C 3.2 x2: 10Gbps Max. (data transfer only)

USB-A 3.0 x3: 5Gbps Max. (data transfer only)

RJ45: 1000Mbps Max.

USB-C1 (PD): 30W Max. (charging only)

USB-C (Host) Output: 5.0V=3.0A; 9.0V=3.0A; 15.0V=3.0A; 20.0V=5A (Max.)

USB-C1 (PD) Output: 5.0V=3.0A; 9.0V=3.0A; 20.0V=1.5A (Max.)

USB-C 3.2 / USB-A 3.0 Output: 5.0V=0.9A (Max.)

Supported Systems: Windows, macOS, Linux, and Vista

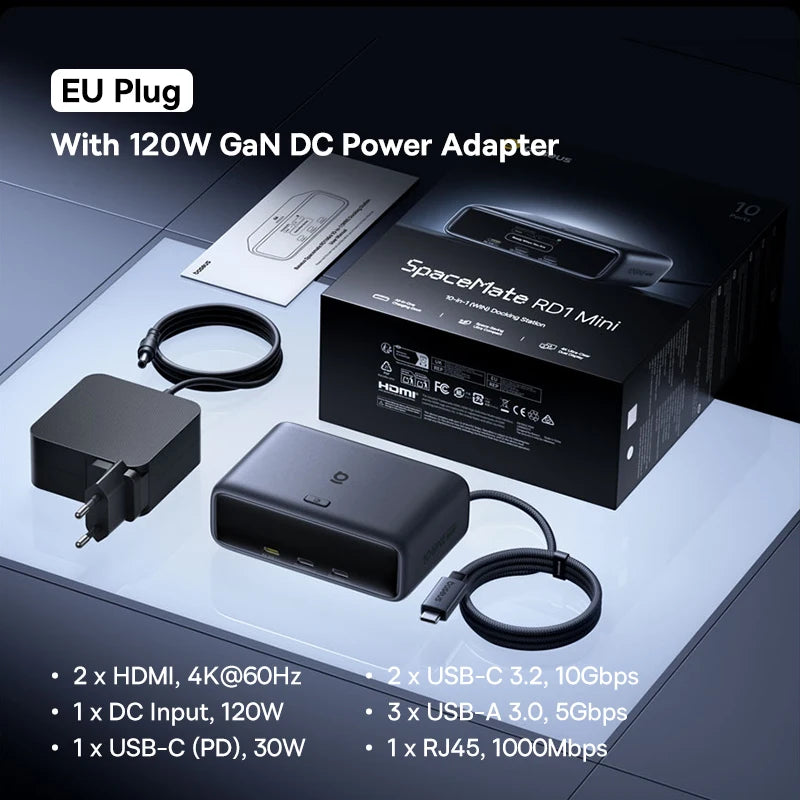

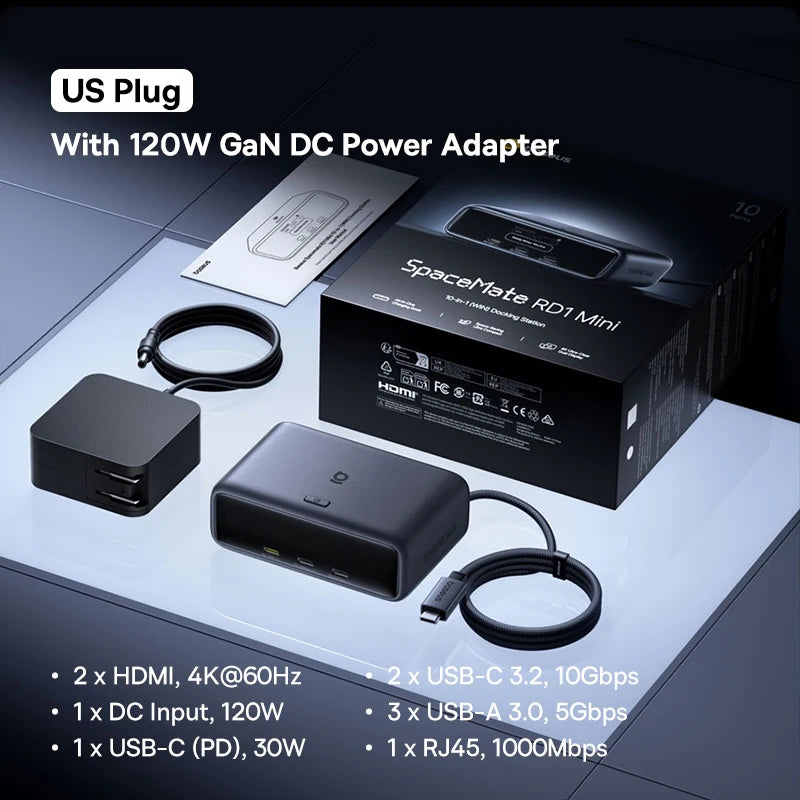

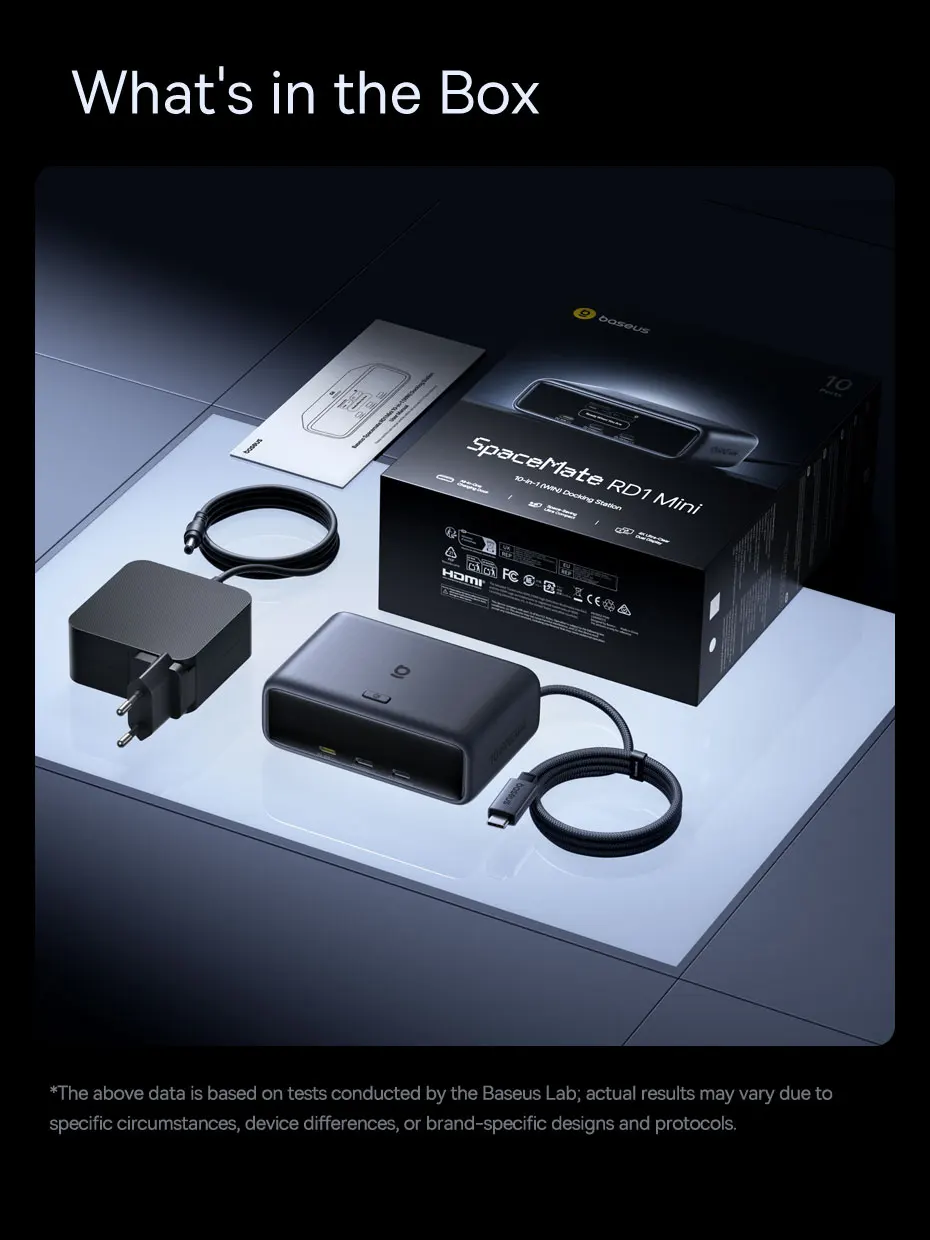

What's in the Box

1* Baseus 10-in-1 Docking Station

1* 120W GaN DC Power Adapter

1* User Manual
