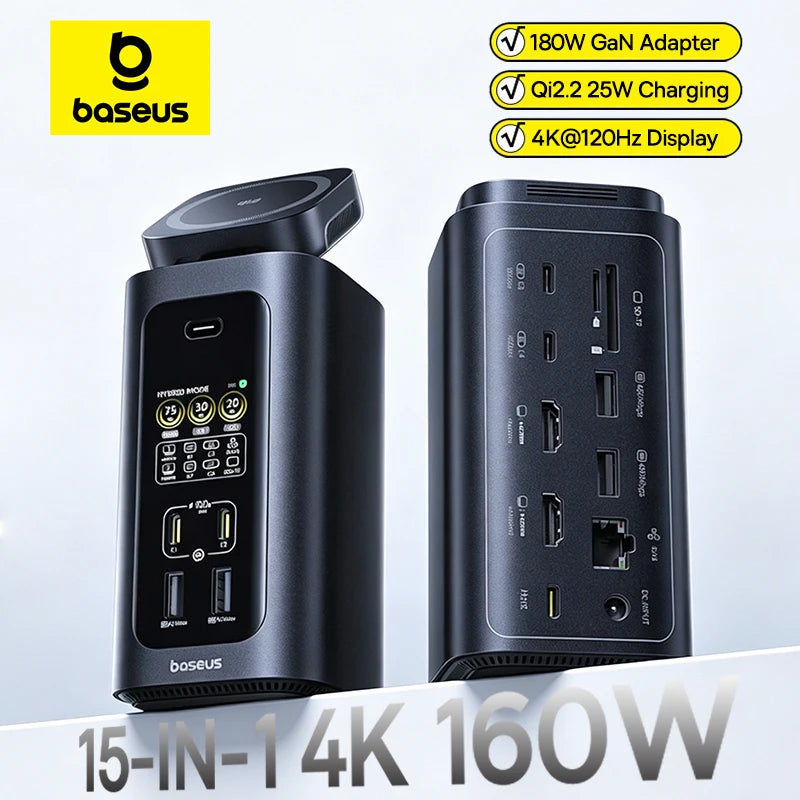

Baseus Spacemate RD1 Pro Docking Station

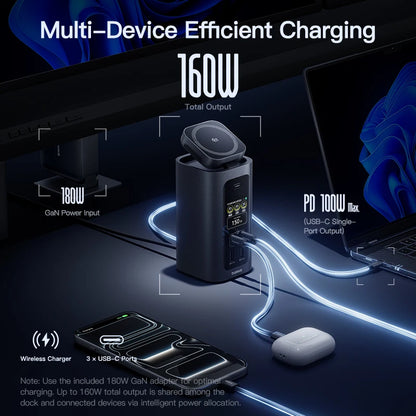

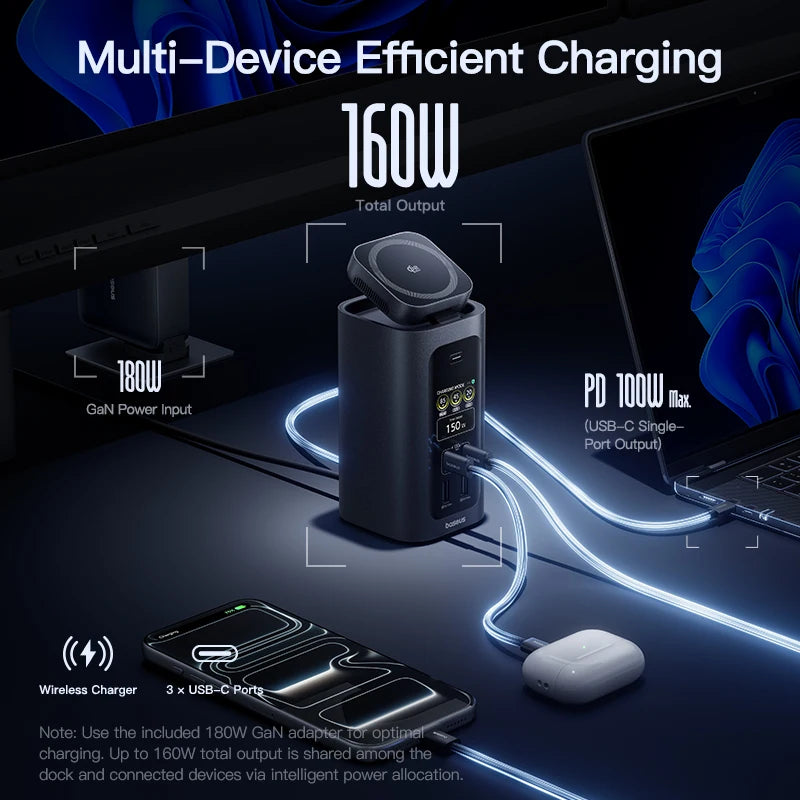

160W Multi-Device Efficient Charging

✅ Qi2.2 25W Wireless Charger

✅ 3 x USB-C PD Charging Ports

✅ 180W GaN Power Adapter Included

✅ Intelligent Power Allocation

⚠️ Note: Use the included 180W GaN adapter for optimal charging. Total charging output is up to 160W due to the dock's own power usage.

180W GaN-Powered Adapter

Takes up less space for a cleaner, more space-saving power outlet and desktop.

✅ Improved Cooling

✅ Energy Saving

✅ Smaller Size

Intelligent Power Allocation

More Eco-Smart, More Efficiency

✅ Up to 35% Faster

⚠️ Note: Actual charging power may vary depending on the number of USB ports in use and the charging status of connected devices.

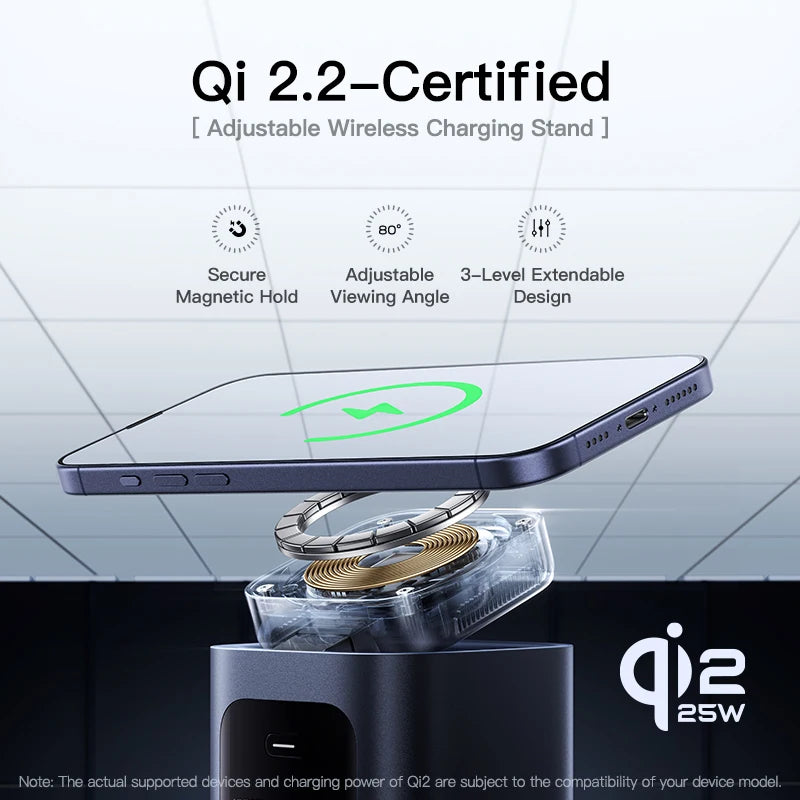

Qi2.2 25W Adjustable Wireless Charging

Power up with safe, fast & stable

✅ Landscape & Portrait Viewing

✅ 80° Adjustable Angle

✅ 3-Level Extendable Design

⚠️ Note: The actual supported devices and charging power of Qi2 are subject to the compatibility of your device model.

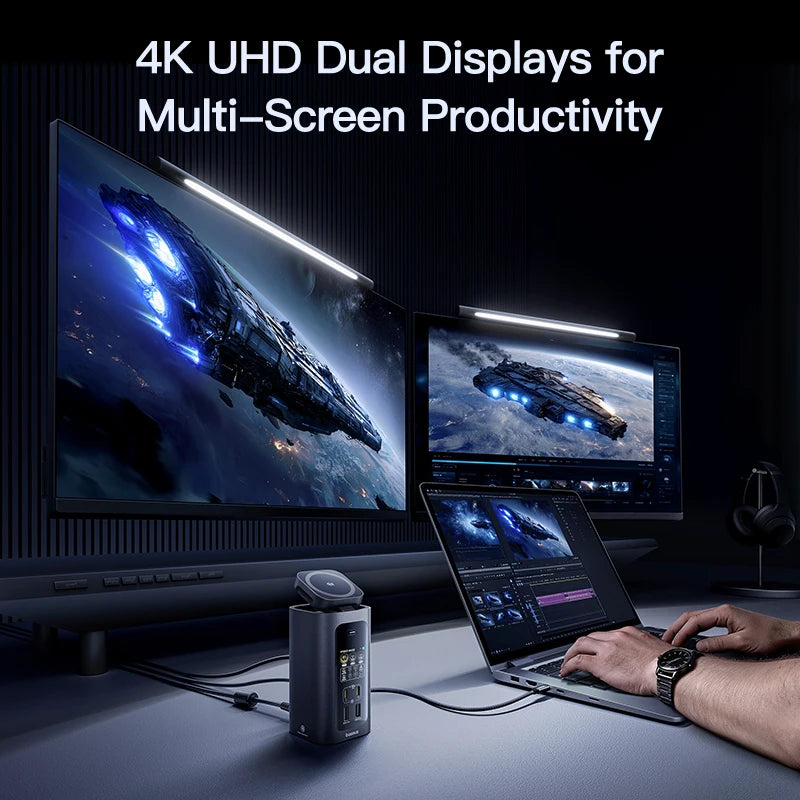

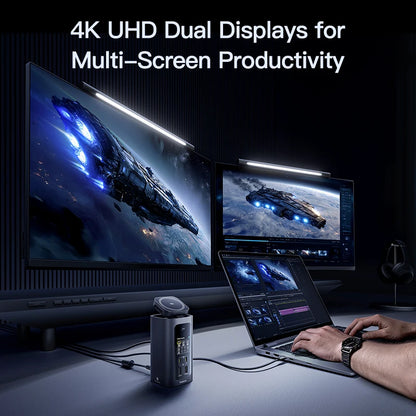

Ultra-Clear, Dual 4K Displays

[ For Multi-Screen Productivity ]

Ideal for Office Use. Designed for Business Laptops.

✅ Single display up to 4K@120Hz

✅ Dual displays at 4K@60Hz

✅ Windows supports mirror and extend modes

✅ macOS supports single extended or mirrored dual displays

⚠️ Note: macOS does not support dual-display extended mode.

Display Instructions

• For Windows

Each external monitor can display different content or mirror the same content.

• For macOS (Limited)

All monitors mirror the same content or use one external display in extended mode.

⚠️ Note: macOS does not support dual-display extended mode.

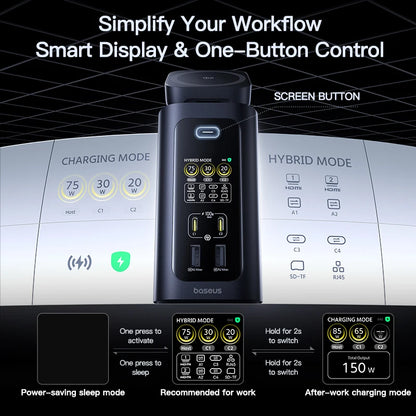

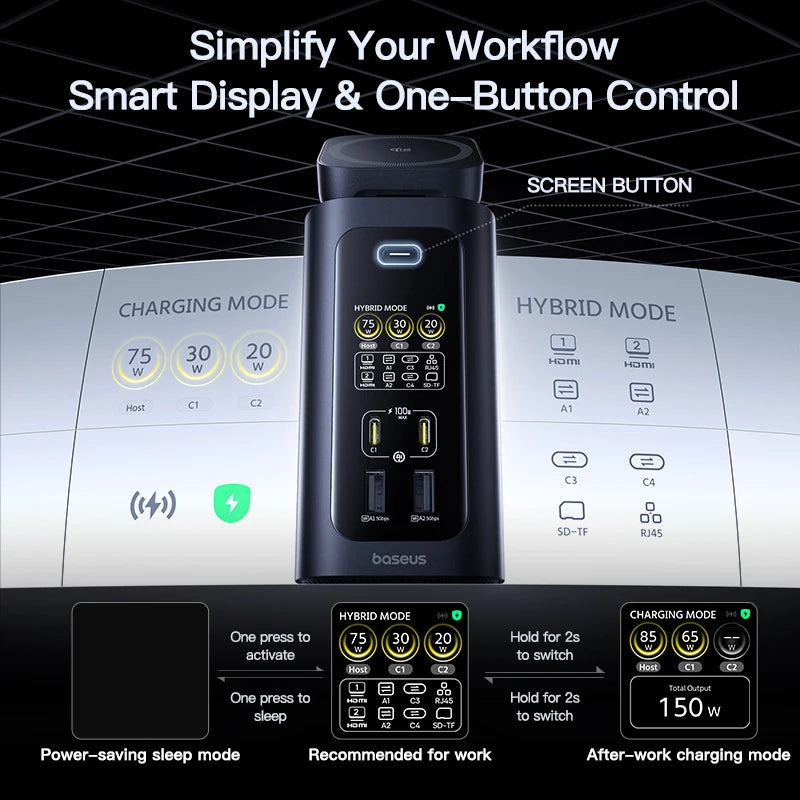

Smart Display, Simple Control

See power and data at a glance. One-button control with smart reminders keeps your workflow seamless.

✅ Hybrid Mode:

• Allows the device to charge while supporting full data and video transmission, including Ethernet, display output, and peripheral connectivity.

⚠️ Note: If the device connected to the Host USB-C port does not support full-function mode, the screen will show "Host Port Detection". Please check whether the device's USB-C port supports full-function output.

✅ Charging Mode:

• Provides power only, all data and video functions are disabled.

① With a device connected to Host, press and hold the screen button for 2 seconds to switch from Hybrid Mode to Charging Mode. Press and hold the screen button for 2 seconds again to return to Hybrid Mode.

② When no device is connected to Host, C1/C2 ports and wireless charging will continue to operate normally.

③ To switch to Hybrid Mode, ensure the Host port is connected to a computer with a full-featured USB-C port.

✅ Wireless Charging Indicator:

• Appears when wireless charger is in normal charging status.

✅ Shield Protection:

• A green shield indicates normal charging.

① If overcurrent, overvoltage, or a short circuit is detected, the shield turns red and the affected port icon also turns red. Please disconnect the device from that port.

✅ Host Port Detection:

• When connected to a PC and other peripherals, this product automatically checks the PC's video, data, and power functions. If any issues are detected, a popup will display the results.

Cleaner Workspace

[ For Enhanced Workflow ]

Simplify your desktop setup with this integrated charging dock.

Graphene Cooling System

Graphene-enhanced thermal structure with integrated air vents enables efficient, quiet heat dissipation.

Universal Compatibility

⚠️ Note: This test list is related to the product model and software version. Version upgrades may affect compatibility. For more supported models, please refer to actual use.

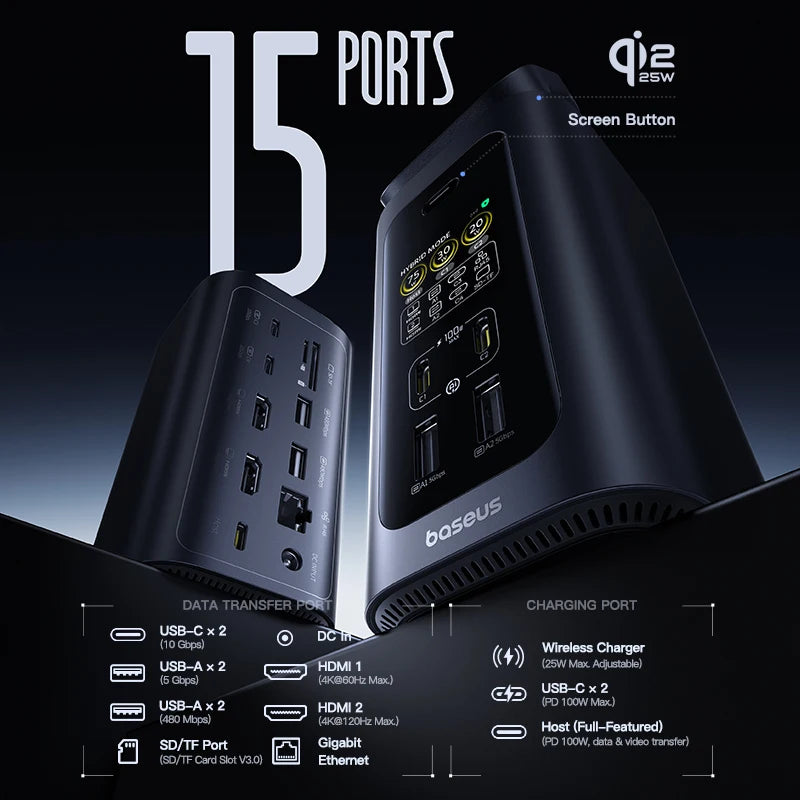

One-Cable Dock, One-Stop Connectivity

15 PORTS

✅ Top

① Adjustable Wireless Charger

• Supports up to 25W wireless charging and smart power management for a Qi-compatible smartphone, foldable and extendable for your desired viewing angle.

✅ Front

② Screen Button

• One tap to turn off or wake up the smart display.

• Press and hold for 2 seconds to switch between Hybrid Mode and Charging Mode.

③ USB-C1/C2

• Connect to your laptop or smartphone using a USB-C cable.

• Supports charging at up to 100W PD with smart power management.

• Does not support data and video transfer.

④ USB-A1/A2

• 5 Gbps Max. data transfer, does not support charging.

✅ Rear

⑤ USB-C3/C4

• 10 Gbps Max. data transfer, does not support charging.

⑥ HDMI 1

• 4K@60Hz Max. display output for HDMI-enabled monitors.

⑦ HDMI 2

• 4K@120Hz Max. display output for HDMI-enabled monitors.

⑧ Host

• Connect your USB-C laptop to transfer data, output video, and charge at up to 100W.

⚠️ Note: Ensure your laptop's USB-C port supports data, video, and power delivery for a one-cable laptop connection.

⑨ SD-TF

• UHS-l card reader slot. Maximum 104 MB/s data transfer.

⑩ USB-A 2.0

• 480 Mbps Max. data transfer compatible with a mouse, keyboard, USB drive, hard drive, receiver, etc.

⑪ RJ45

• 1000 Mbps (Gigabit), backward compatible with 100Mbps and 10Mbps.

⑫ DC Input

• Connect to the included power adapter for 180W GaN DC power input.

FAQs

❓ Power Warning on DELL / HP Computers When Using Third-Party Chargers:

📢 Due to some proprietary PD protocols used by DELL and HP, a low-power or low-voltage charging warning may appear when using third-party chargers. This does not affect normal charging performance.

❓ Resolution and Refresh Rate Notice:

📢 1. Port Requirements

• HDMI 1 supports up to 4K@60Hz, while HDMI 2 supports up to 4K@120Hz. In multi-monitor extended mode, the maximum output is 4K@60Hz. To achieve the highest refresh rate, HDMI 2 should be used.

📢 2. Cable and Protocol

• Ensure that the cable and port meet the required specifications: DP ports must support DP 1.4, and HDMI ports must support HDMI 2.0 or above. Using high-quality certified cables ensures stable signal transmission.

📢 3. Computer Specifications

• Confirm that your computer's graphics card and ports support 4K@60Hz / 4K@120Hz output. Insufficient performance may result in reduced resolution, unstable display, or screen lag.

📢 4. DSC (Display Stream Compression)

• Both the computer and monitor must support DSC. Some devices automatically enable DSC in extended display mode, while others may require manual activation to achieve high resolution and refresh rate output.

❓ Why is wireless charging slow, intermittent, or not charging my phone?

- Slow Charging

📢 1. Phone must support Qi2 wireless charging

• Ensure your phone supports Qi2 wireless charging. Phones without Qi2 compatibility cannot charge wirelessly.

📢 2. Charging with a phone case

• Charging with a protective case may reduce efficiency and cause the phone to heat up. To protect the device, the system may automatically reduce charging power. This is normal behavior.

📢 3. Internal charging protection

• When the battery is nearly full, the phone may automatically reduce charging power to protect battery health. This is normal behavior.

- Intermittent / No Charging

📢 1. Alignment

• Ensure that the phone's magnetic charging coil is aligned with the wireless charging module. Misalignment may trigger the protection mechanism and cause charging to stop.

📢 2. Phone case or metal interference

• Thick cases or cases with metal rings may affect wireless charging efficiency and trigger FOD (Foreign Object Detection) protection. It is recommended to use a thinner case or charge the phone without a case.

❓ What are the requirements to use this product?

📢 Make sure your device's USB-C port is full-featured, supporting charging, data transfer, and video output. If it is not, some features (like screen mirroring) may not work.

📢 Full-featured USB-C port: Supports charging, data transfer, and video output. Maximum data transfer speed: 10 Gbps (USB 3.2 standard), backward compatible with USB 2.0/1.1. Non-full-featured Type-C ports may only support charging or data transfer.

❓ Why doesn't the HDMI port support screen casting?

📢 Select the correct HDMI input on your monitor/TV (e.g., LG: Settings → Input → Input List → HDMI 1 or 2).

📢 Ensure proper device setup according to Display Instructions for the corresponding resolution and refresh rate.

📢 Some non-standard monitors may be incompatible.

❓ Why is the screen resolution lower than advertised?

📢 This product supports DP 1.2 and 1.4 standards, but the maximum resolution depends on your device's hardware (laptop, HDMI cable, monitor). If your device does not support the advertised resolution, this product cannot output it.

❓ Why does the product heat up during operation?

📢 It contains charging ICs and video ICs, which generate heat during use. The outer shell has passed safety testing and meets maximum temperature requirements for normal usage.

❓ Why can't my Mac use multiple extended displays?

📢 With macOS, this product supports multi-monitor mirroring only and does not support extended multi-monitor mode. This is because macOS does not support MST (Multi-Stream Transport) for driving multiple independent displays.

❓ Why do multiple external hard drives sometimes fail to transfer data?

📢 Connecting several high-power mechanical hard drives or running this product at full load may exceed its power supply capacity, causing slower transfers or disconnections.

❓ Why don't some devices charge at full speed?

📢 Some devices use proprietary charging protocols that are not compatible with standard PD (Power Delivery) protocols, such as certain Huawei and Xiaomi devices.

❓ Why does the displayed charging power fluctuate during charging?

📢 Charging power varies depending on the device's real-time battery status. The display shows real-time data for reference, not a fixed value.

❓ Why does my laptop show a slow-charging warning?

📢 Some devices use private charging protocols. When charging via a third-party product, a slow-charging notification may appear. Actual charging speed and efficiency remain normal and sufficient for non-gaming laptops.

❓ Why won't some mobile devices charge wirelessly?

📢 Check whether your device supports the Qi wireless charging protocol. This product only supports Qi; it is not compatible with other proprietary wireless charging protocols.

Product Parameters

Brand: Baseus

Name: Baseus Spacemate RD1 Pro 15-in-1 (WIN) Docking Station

Model No: B01146

Color: Cosmic Black

Input Ports:

Host: USB-C (full-featured, supports data, video, and PD 100W Max.)

DC Input: 24.0V 7.5A Max.

Output Ports:

HDMI 1: 4K@60Hz Max.

HDMI 2: 4K@120Hz Max.

USB-C x2: 10 Gbps Max. (data transfer only)

USB-A x2: 5 Gbps Max. (data transfer only)

USB-A 2.0 x2: 480 Mbps Max.

SD/TF: UHS-I card reader, 104 MB/s Max. data transfer

RJ45: 1000 Mbps Max.

Charging:

USB-C (PD) x2: PD 100W Max. output (charging only)

Qi 2-Certified Adjustable Wireless Charger: 25W Max.

Host/USB-C1/USB-C2 Output: 5.0V=3.0A; 9.0V=3.0A; 12.0V=3.0A; 15.0V=3.0A; 20.0V=5.0A

USB-C3/USB-C4/USB-A1/USB-A2 Output: 5.0V=0.9A

Wireless Charging Output: 5.0W/7.5W/10.0W/15.0W/25.0W

Total Output: 160.0W Max.

Supported Systems: Windows, macOS, Linux, and Vista

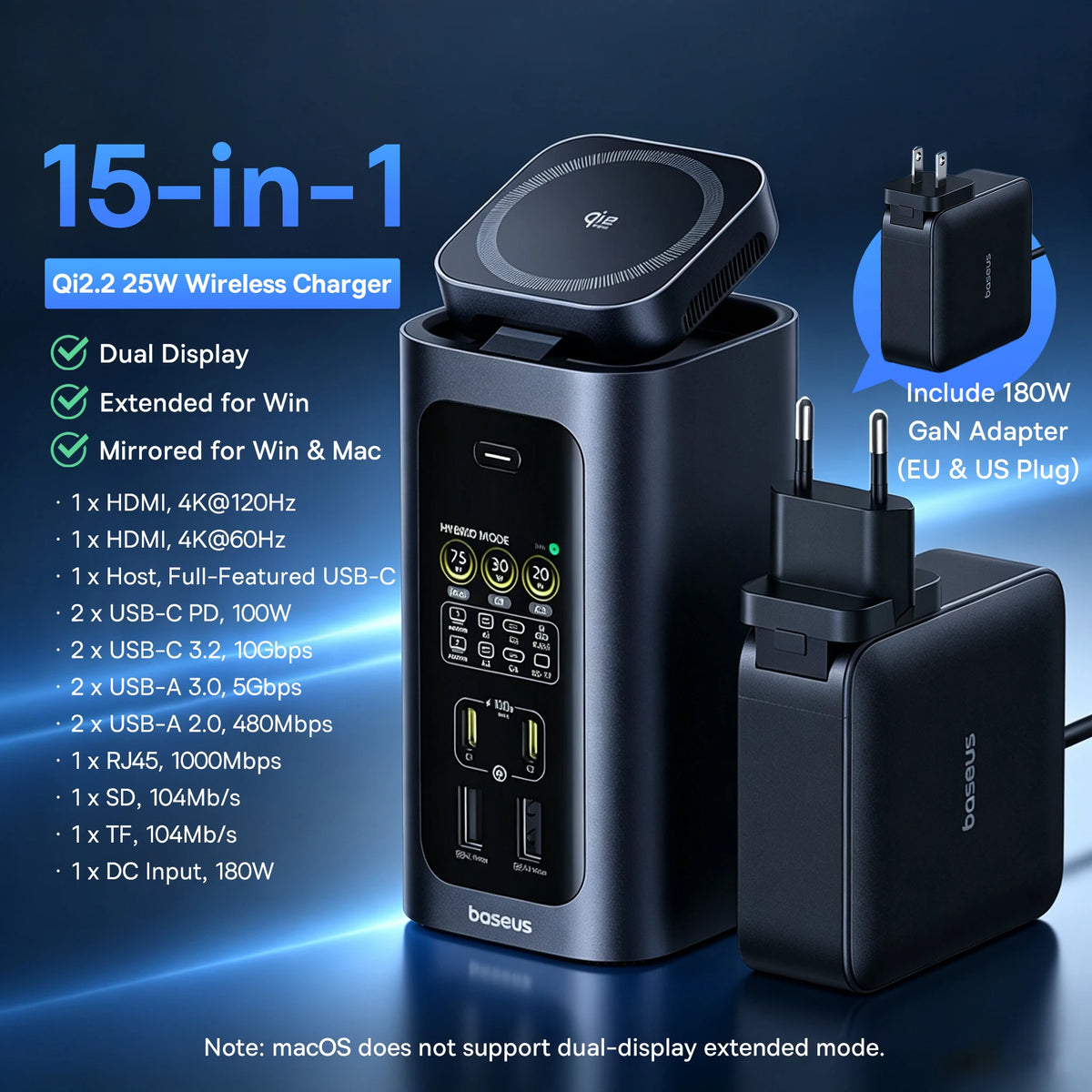

What's in the Box

✅ 15-in-1 Docking station x 1

✅ 180W GaN power adapter x 1

✅ Detachable US/EU plugs x 1

✅ 0.8m full-featured USB-C cable (supports data, video, and power) x 1

✅ User manual x1
