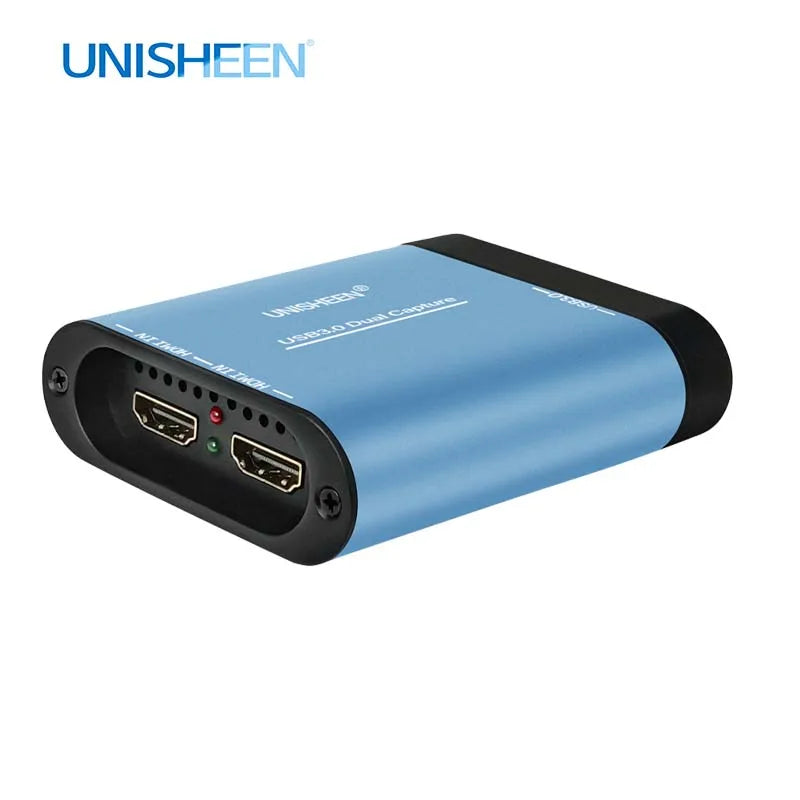

Two-Way Dual-Interface Video Capture Box UNISHEEN

Two-Way Dual-Interface Video Capture Box UNISHEEN

$220.64
$220.64
SAVE -100% Sold out





Features:

1. Connect multiple dongles to one machine
2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate
3. Support brightness, contrast, hue, saturation, and other screen adjustment functions
4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output
6. The video processing engine can be updated via firmware without changing the hardware.
7. Automatically detect and de-interlace signals
8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.
Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.
Compatibility:
1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1
2. Compatible with USB 2.0
3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
5. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.
Excellent Video Processing:
1. Support up to 1920x1200p60 (CVT-RB) Video Input
2. Video output support up to 1920x1200p60 in YUY2
3. Video output support up to 1920x1200p60 in RGB24
4. The process of video and audio is done by the dongle and will not occupy CPU.

Specifications:


Connection

Host Interface

USB3.0, *300-350MB/s throughput
USB2.0, *40MB/s throughput

Input Interface

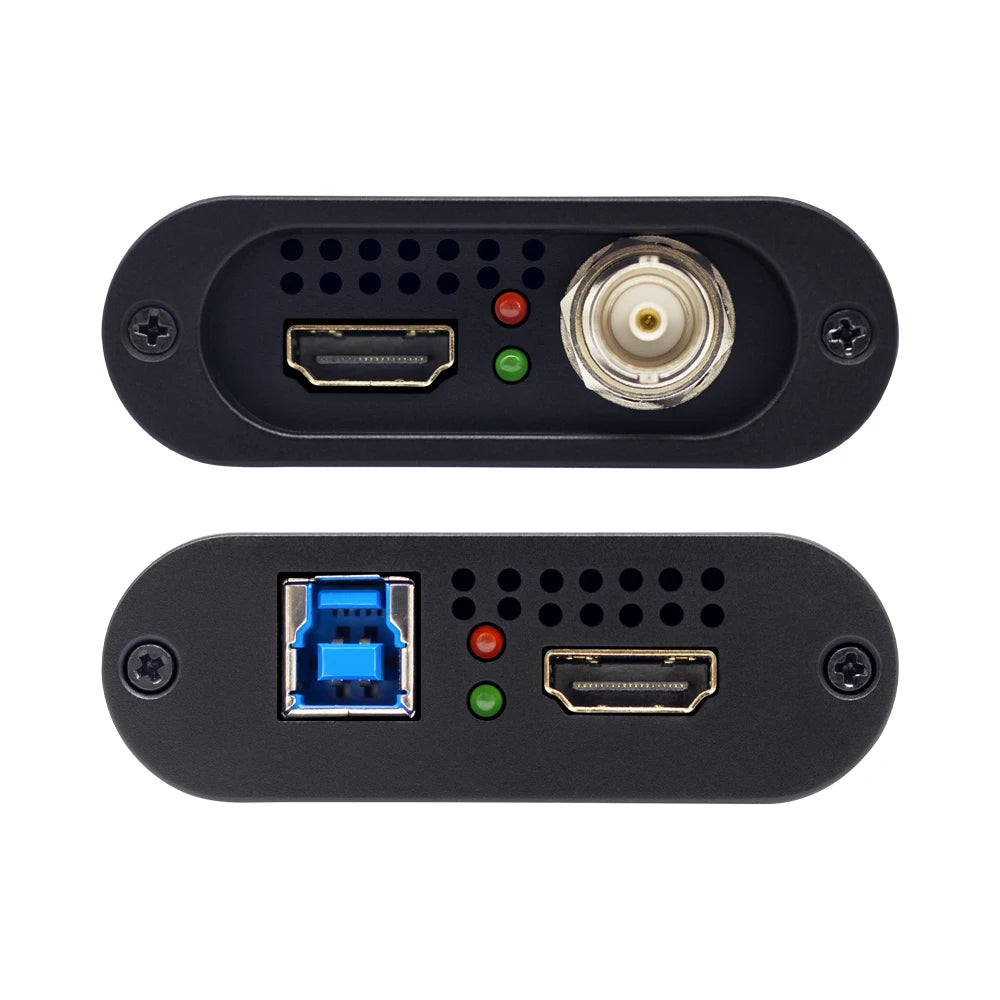

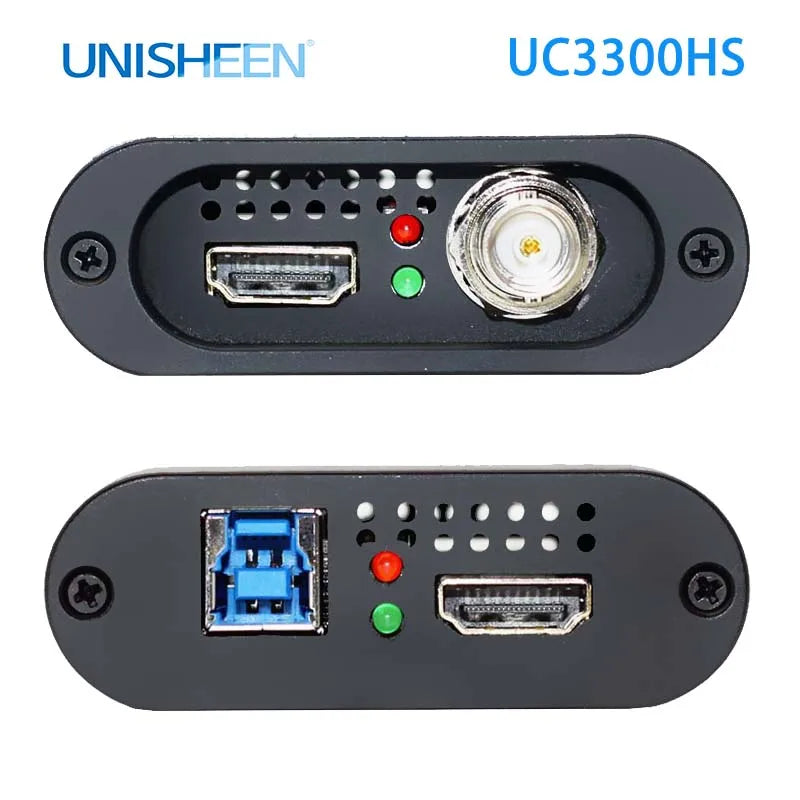

1 HDMI interface/1 SDI interface

HDMI Video Input

1 1080P/60HZ HD HDMI signal or SDI signal

HDMI Audio Input

1 LPCM audio signal

Standard

HDMI Input Formats

It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV) or HD-SDI/3G-SDI

Output Formats

Up to 48KHz, 85db, 24-bit

Video Sampling Rate

HDMI: 165MHz

Audio and Video Capture

It meets the standards of UVC (USB video class) and UAC(USB audio class)

Output Color Space

YUY2, RGB24

Video Processing

Switch of Color Space

Hardware Color Switch

Image Scale

Hardware Scale

Image Adjustment

The image adjustment of brightness, contrast, hue, saturation

Others

OS Support

It supports the following operating systems (x86 and x64 versions):
Windows 7 Windows Server
2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)

Software Compatibility

Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder(Windows, OS X)
Real Producer Plus(Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X), etc.

Pacakge:

1 x HDMI+SDI Capture Dongle
1 x USB Cable
1 x User Manual


Interface


USB interface

USB3.0，360MB/s Bandwidth(Compatiable USB2.0)

Input interface

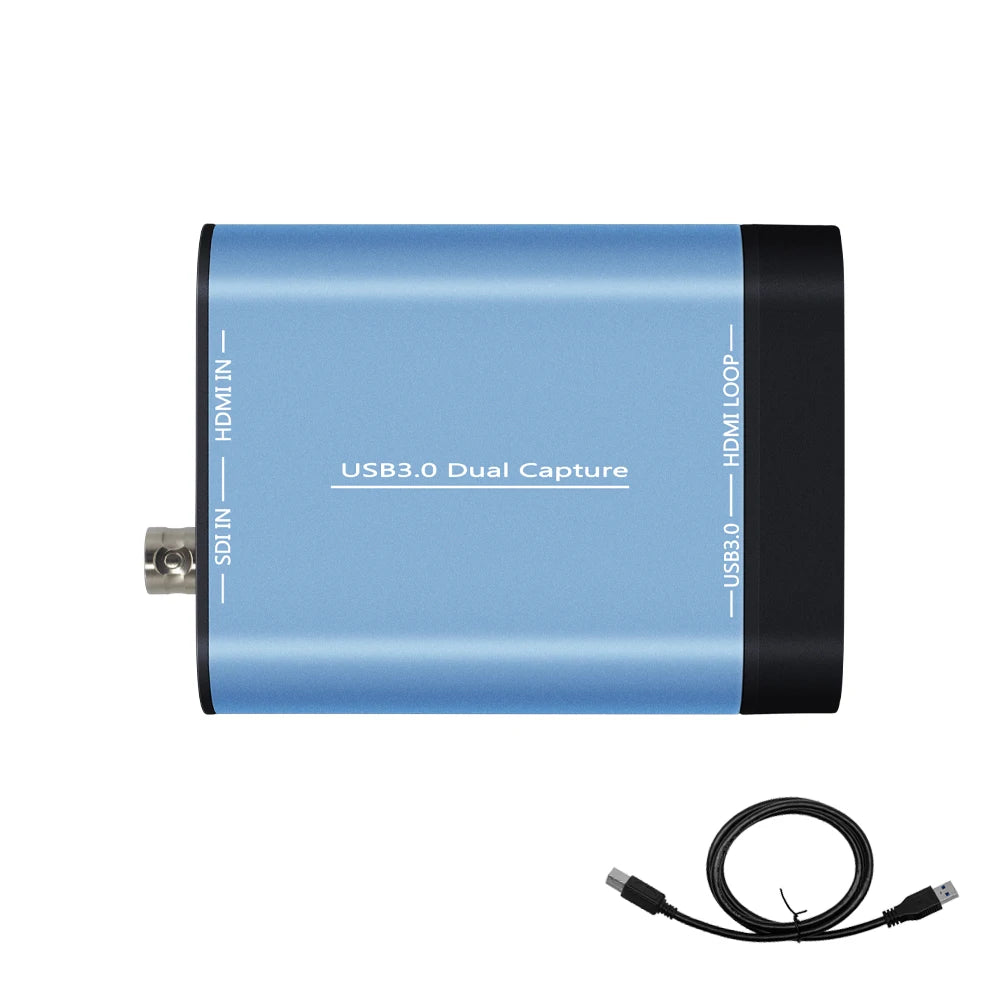

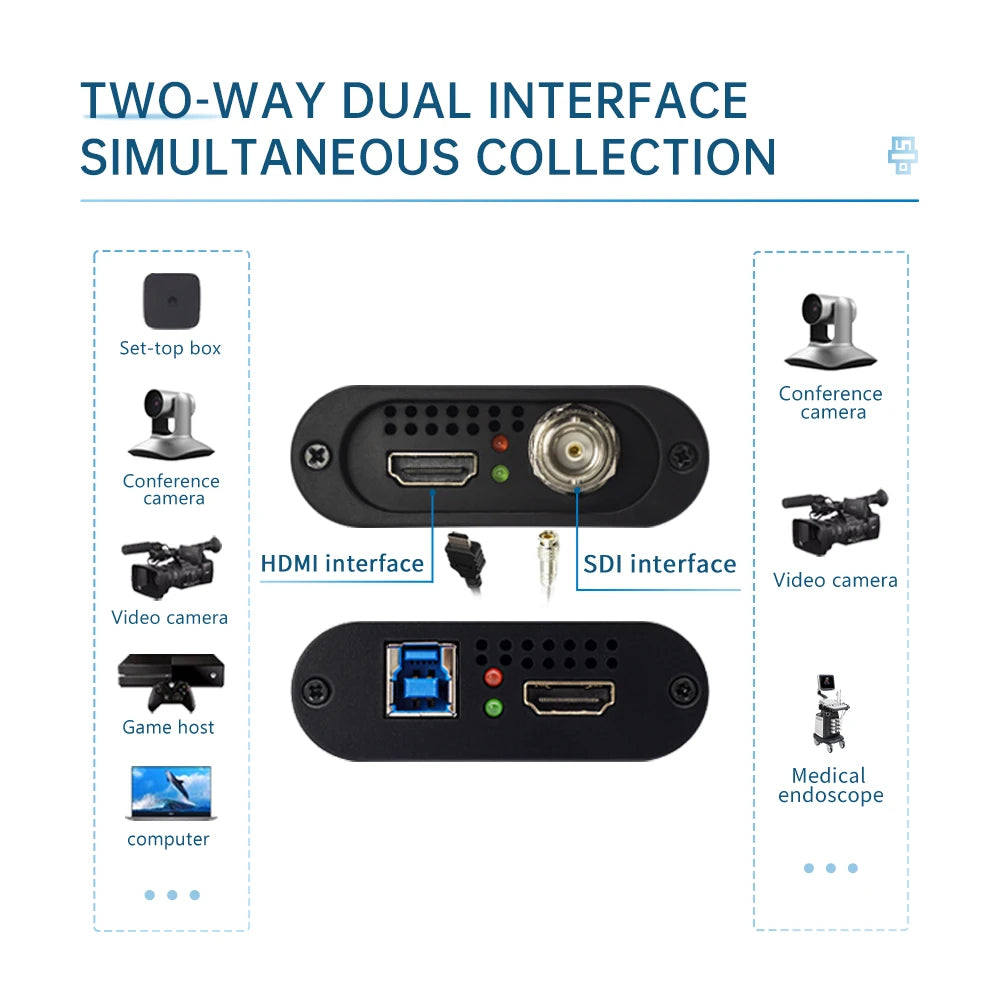

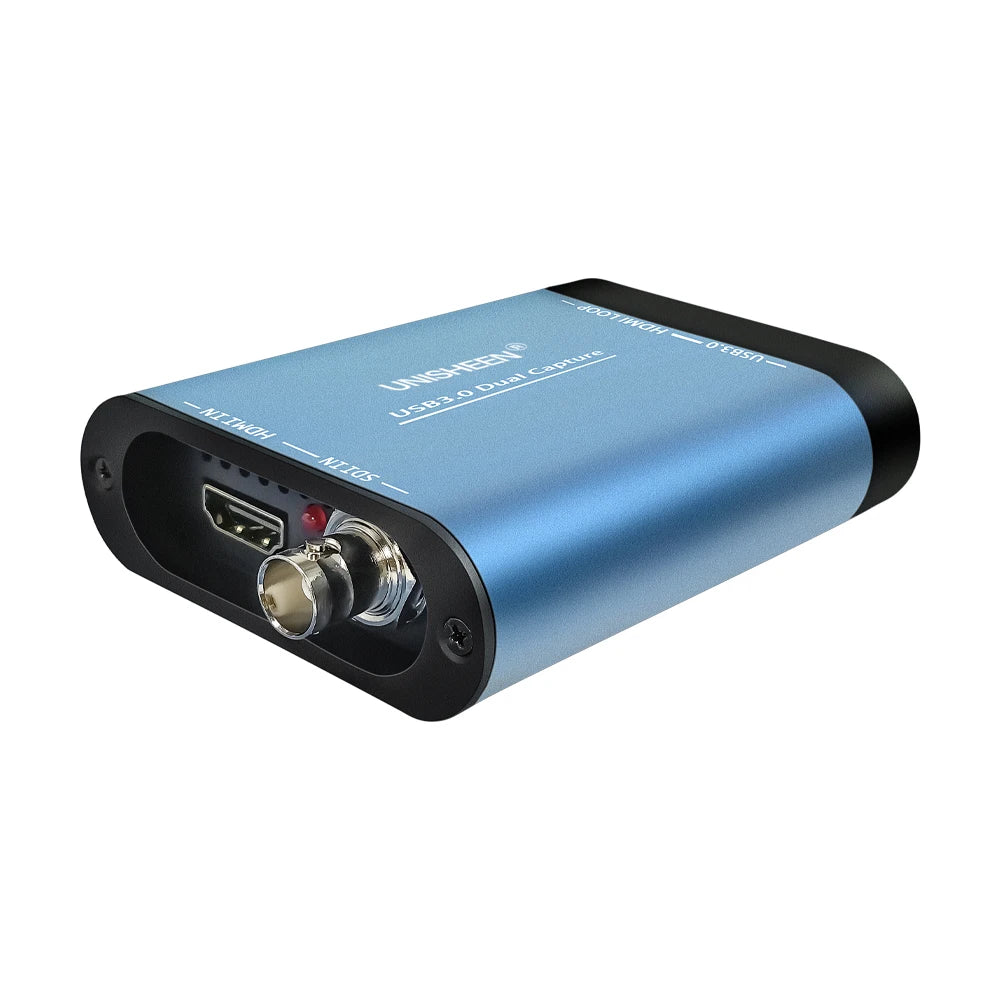

1xSDI,1xHDMI(Dual Channel Input)

Output interface

Only 1xHDMI Loop（this loop output don't support SDI in)

Video input

1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I

Audio input

HDMI/SDI embedded

Standard


HDMI input format

HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(YUV)SD/HD/3G-SDI，SMPTE-259/274/296/372/424/425/292 compliance

Transmission speed

HDMI:165MHZ,SDI:1.485Gb/s，2.97Gb/

Video capture

UVC (USB video class) compliance

Audio capture

UAC (USB audio class) compliance

Output color space

YUV2 NV12

Recording Mode

Software Compression, Real-Time Mode

General


Operation system

Supportversion x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2Linux

Compatible software

Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.…

Compatible development interface

DirectShow (Windows), DirectSound (Windows)

Update

Firmware can be updated by USB port

Dimension

69x90x24mm

Box Dimension

100x146x53mm

Net/Gross Weight

0.2/0.3kg

Consumption

<= 3.5 W

Working Temperature

0-50 degree

Storage temperature

-20-70 degree

Storage humidity

5%-90%

Included in package

*USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs

Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30.
